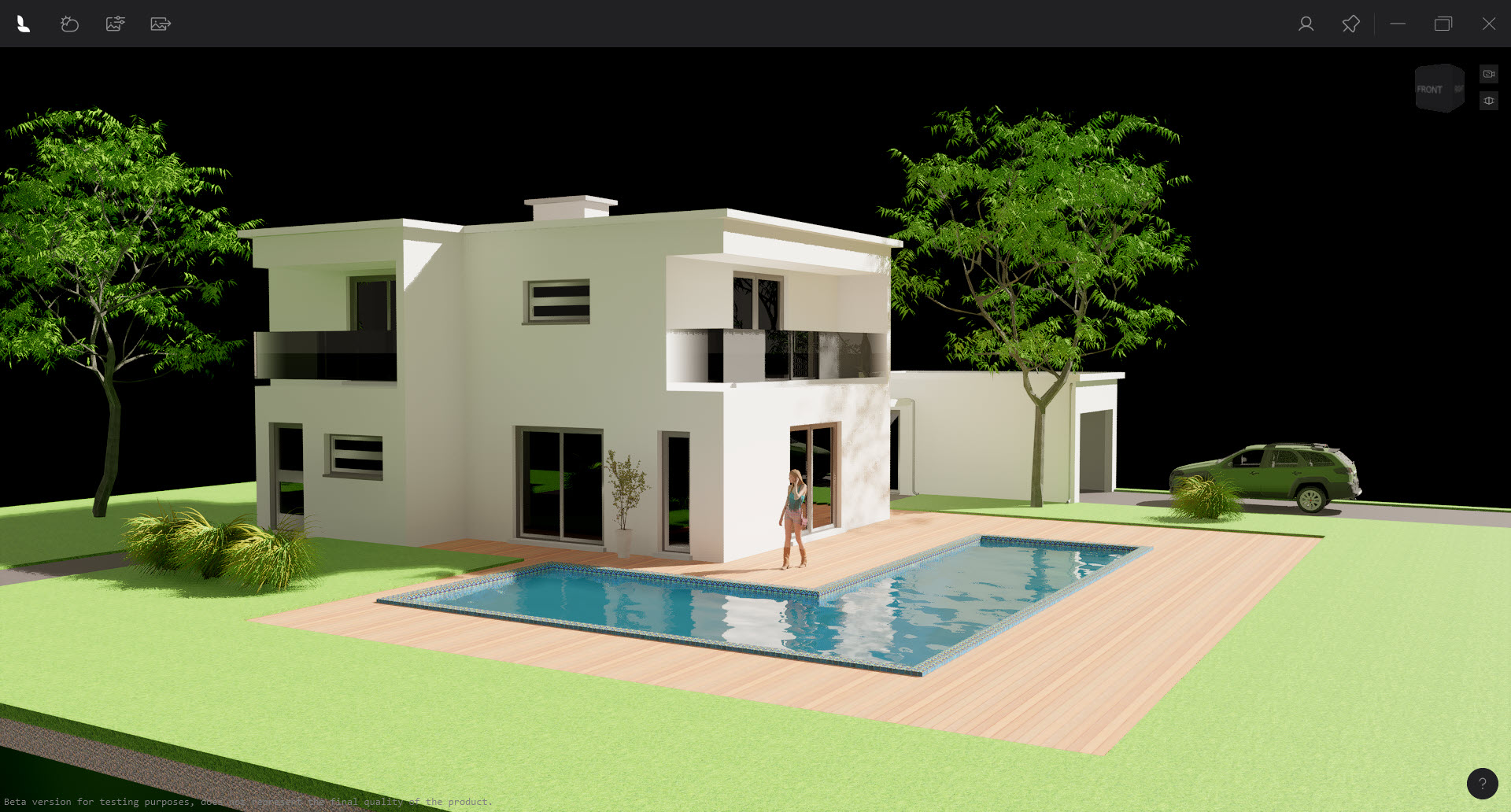

LView Editor - headers _maison house Perspective 1 bakgrd-Black _fullScreen.jpg

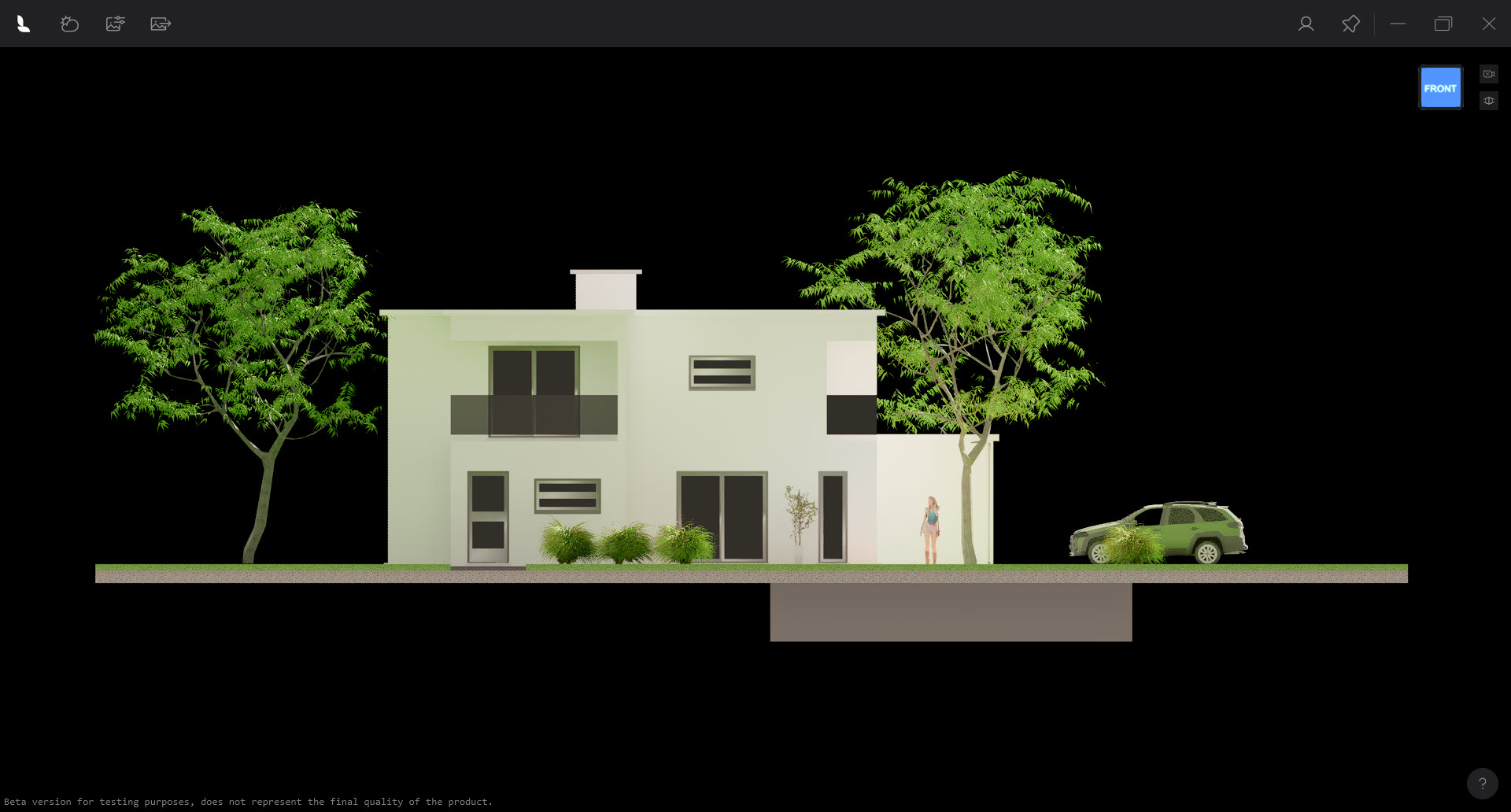

LView Editor - headers _maison house Orth-Front 1 bkgrd-Black _fullScreen.jpg



Menu:

1. Overview.

1.1: You Can.

1.2: Steps: Summary.

2. To open the Editor window.

2.1: Start Lumion View - the Editor.

2.2: Lumion View Window Opening Process.

3. Edit the Environment settings:  Sun and Sky.

4. Set the Visual Style.

5. Set your Output render options and Render.

6. Camera, Keyboard and Mouse actions.

6.1: Using the Camera options.

6.1: What are the Keyboard and Mouse actions?

7. Other Editor tools on the View window bar.

7.1: Account and Feedback.

7.2: Pin the Lumion View Window.

7.3: Manage the Window.

7.4: Help.

8. FAQ's.





1. Overview:

1.1: You Can

Create the final look and feel for your render.

With the Lumion View Editor (window) you can achieve the following:

  • Set an environment/background very quickly and simply with a sky and sun, or with a single color for more of a conceptual look.
  • The environment will define the lighting: day, night, cloudiness(*) and ambient sky coloring.
  • As principally a Concept tool, you can set the look (Style) that your design/model will be viewed as by your client.
  • Render as a high quality Ray Traced image.
  • Access your Account, log out, provide product feedback,



1.2: Steps: summary

1.  Load your model in SketchUp, or create a model (make sure to save it).

2.  Start Lumion View - the Editor.

3.  Click on the Environment button.  Then use or make changes to the Environment for Sun, Sky and Clouds(*).

4.  Click on the Visual Styles button to use or select a different Style for the overall look and feel.

5.  Click on the Render to File button to render and save an image to file/disk.

6. Manage the Editor window.



You can Render an image at any time.

You control the Editor window and its placement/location for your desktop workspace.





2. To open the Editor window:

2.1: Start Lumion View - the Editor

LView Toolbar Start.png

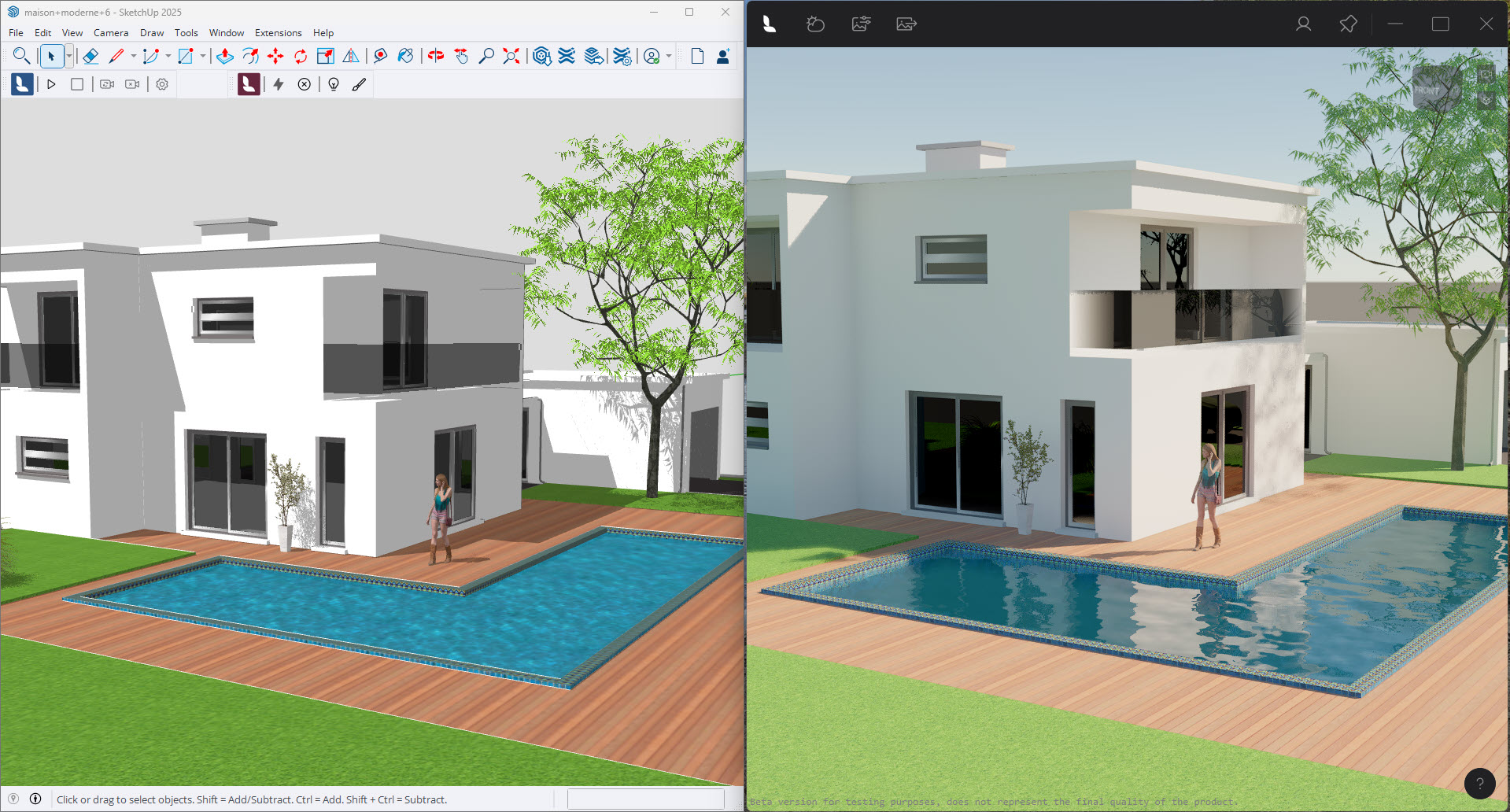

SdieBySide _Maisonmodeme6.jpg



2.2: Lumion View Window Opening Process

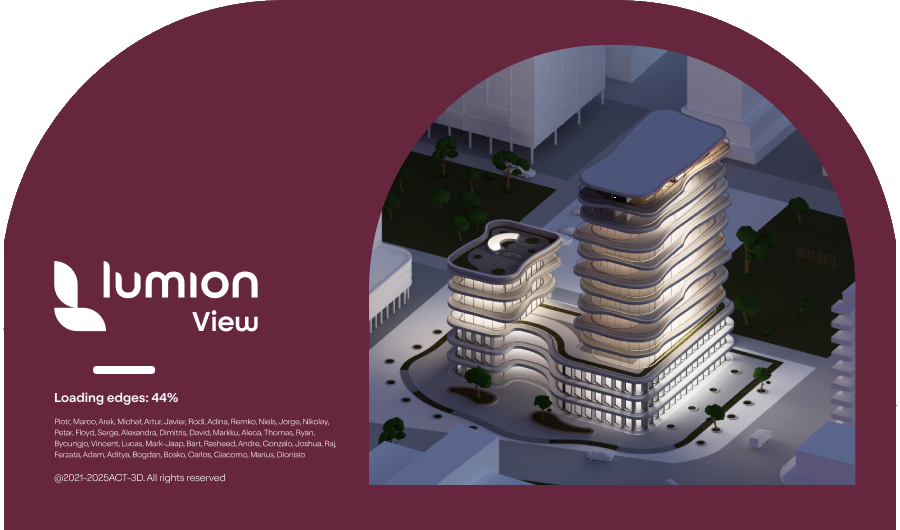

LView Loading and getting model data _entryScreen_tr.png

The initial loading process will go through the following steps to load the SketchUp model:

  1. Initialization.
    This takes longer only for the first time Lumion View is run for a Windows session.
  2. Loading Materials.
  3. Loading Components.
  4. Loading Edges.
  5. Loading Tags.
  6. Loading Hierarchy.

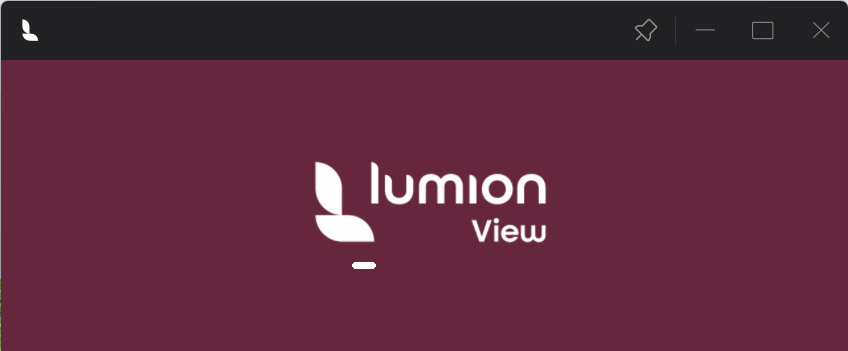

Preparing the Lumion View window for real time Ray Trace rendering of your model:

LView Loading View Window preparing_fullCut.png



Access tools from the window bar:

LView window toolbar.png



2.3: Stop/Close the Editor window

To Close the Editor window (Stop Lumion View) click on the X button or use the Close/Exit button in the Editor window.

LView Toolbar Stop Editor buttonX.png    LView window -Close-Exit.png



3. Edit the Environment settings:  Sun and Sky:

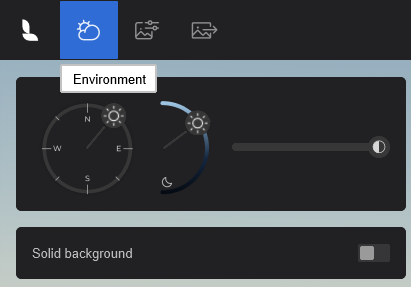

LView Editor - Environment SunSky-noClouds.png

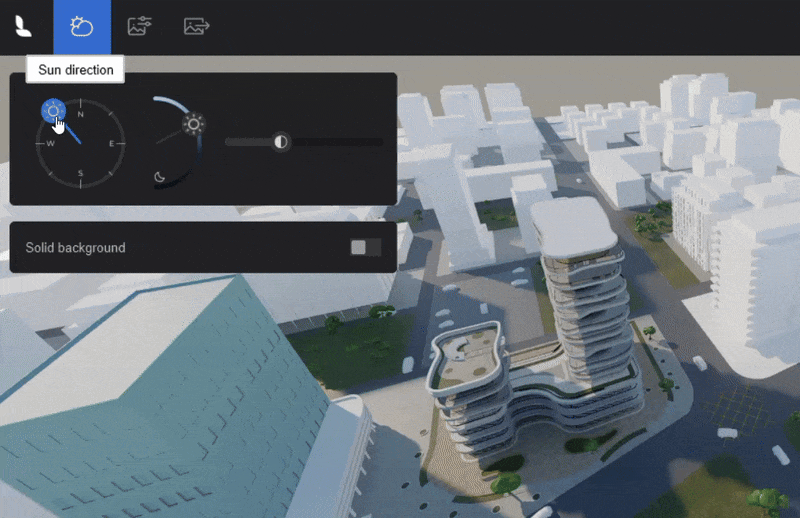

  • Set the Sun Height and Heading and Sky clouds(*).


  • Use a solid background for a difference in style than a sky.

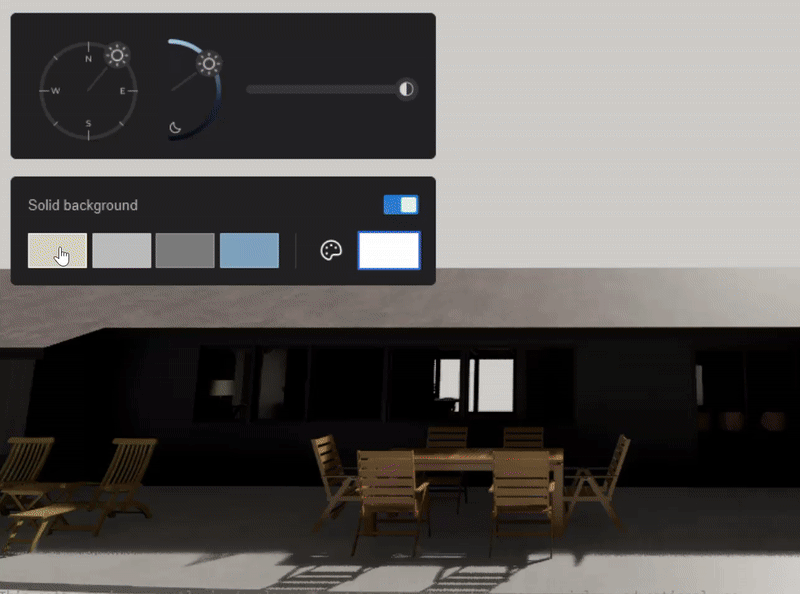

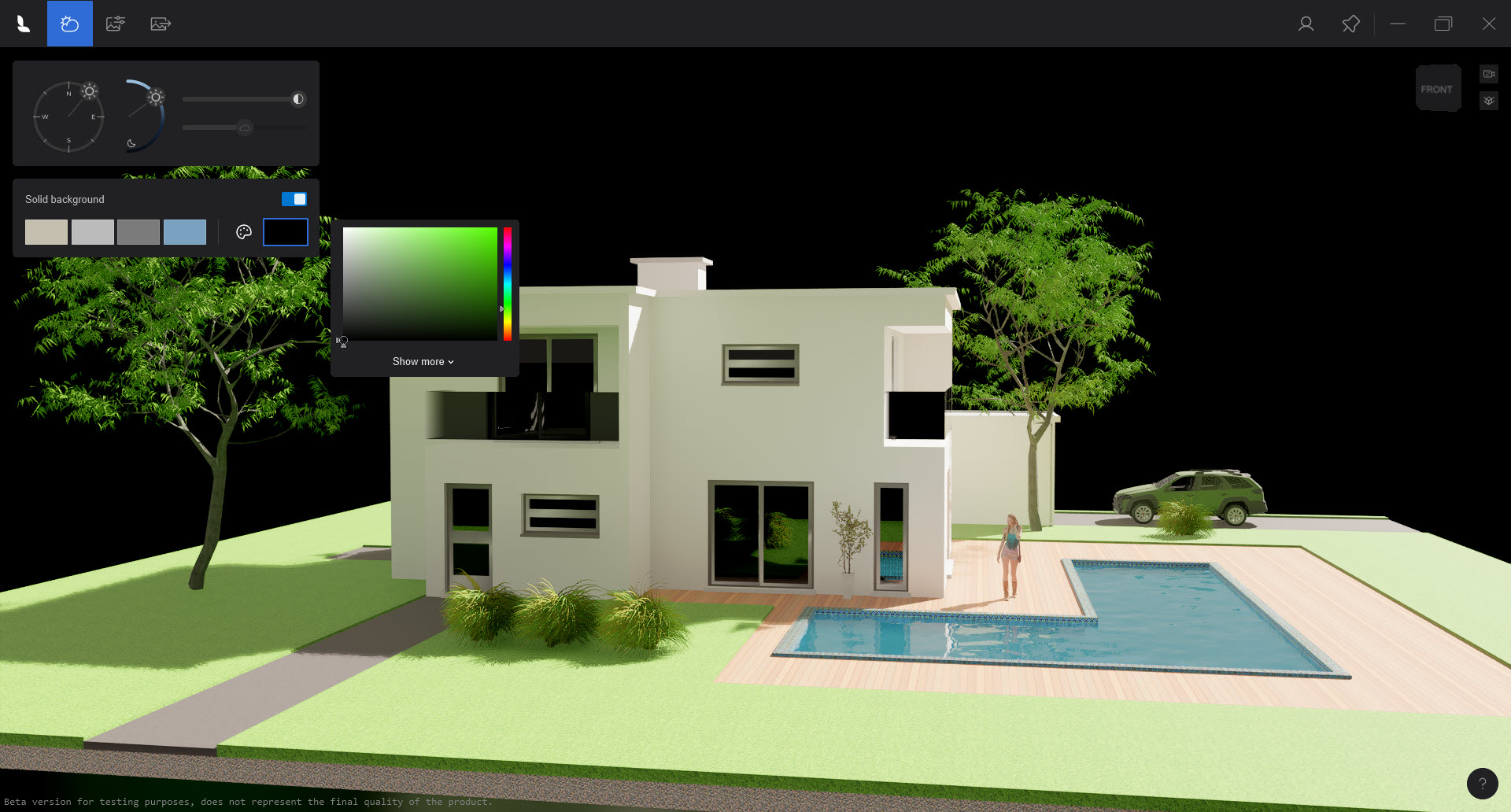

background color.gif

  • If you choose a single color background your Sky and Sun settings will still be used to generate correct lighting for the Ray Trace render.  However there will be adjustments for the Exposure form the single and color.  Along with expected changes in the reflections.

(*) The Clouds slider has been temporarily removed and a new Clouds system is being planned for release shortly.



4. Set the Visual Style:

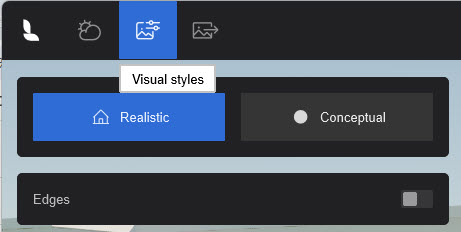

LView_Editor _VisualStyles.jpg

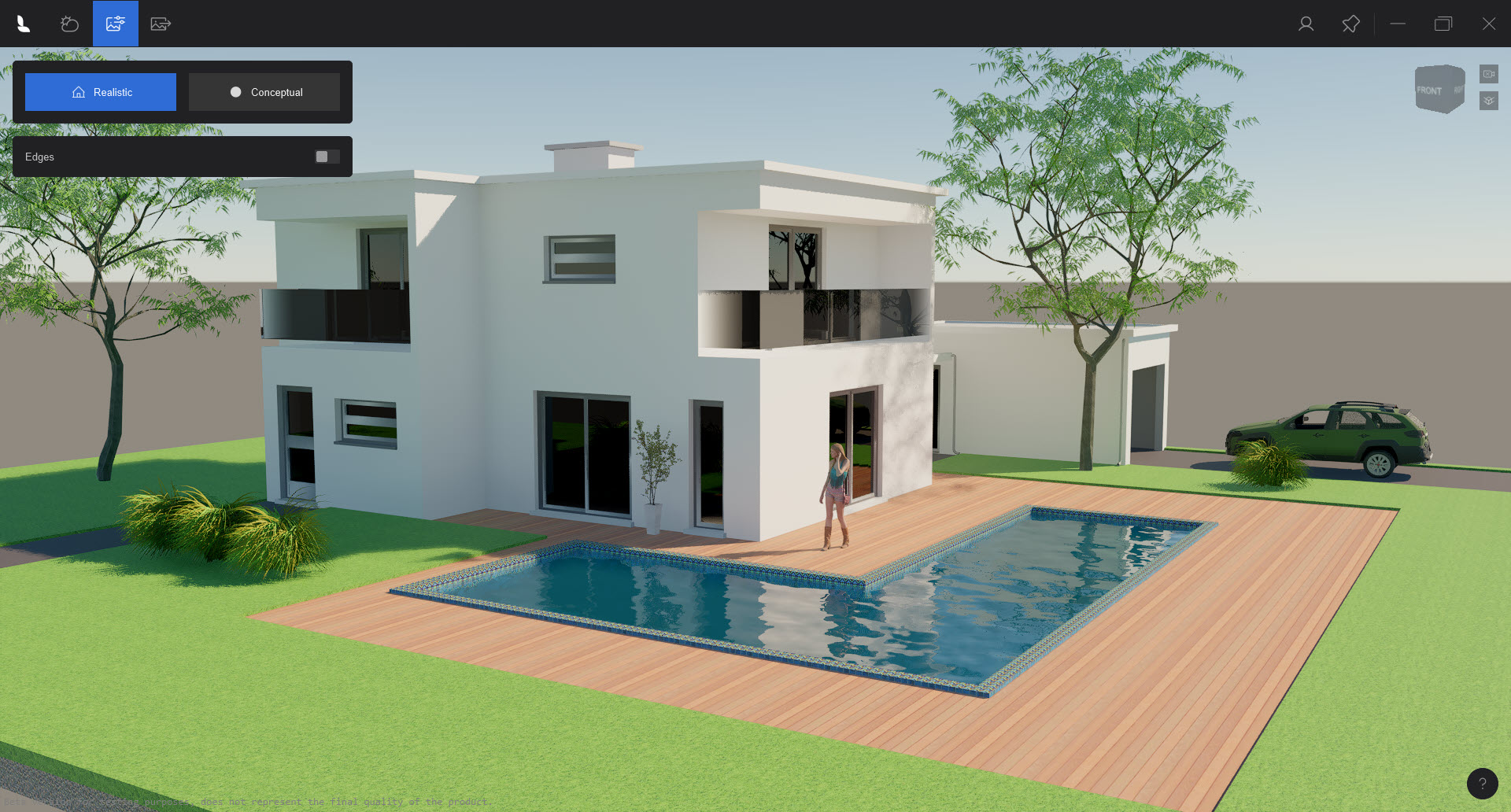

How do you want to communicate the feeling for your design to the client?  Set one of two overall Styles:

    • Realistic:

      LView Editor RlT Editor _maison _Realistic.jpg

    • Conceptual (four (4) Styles):

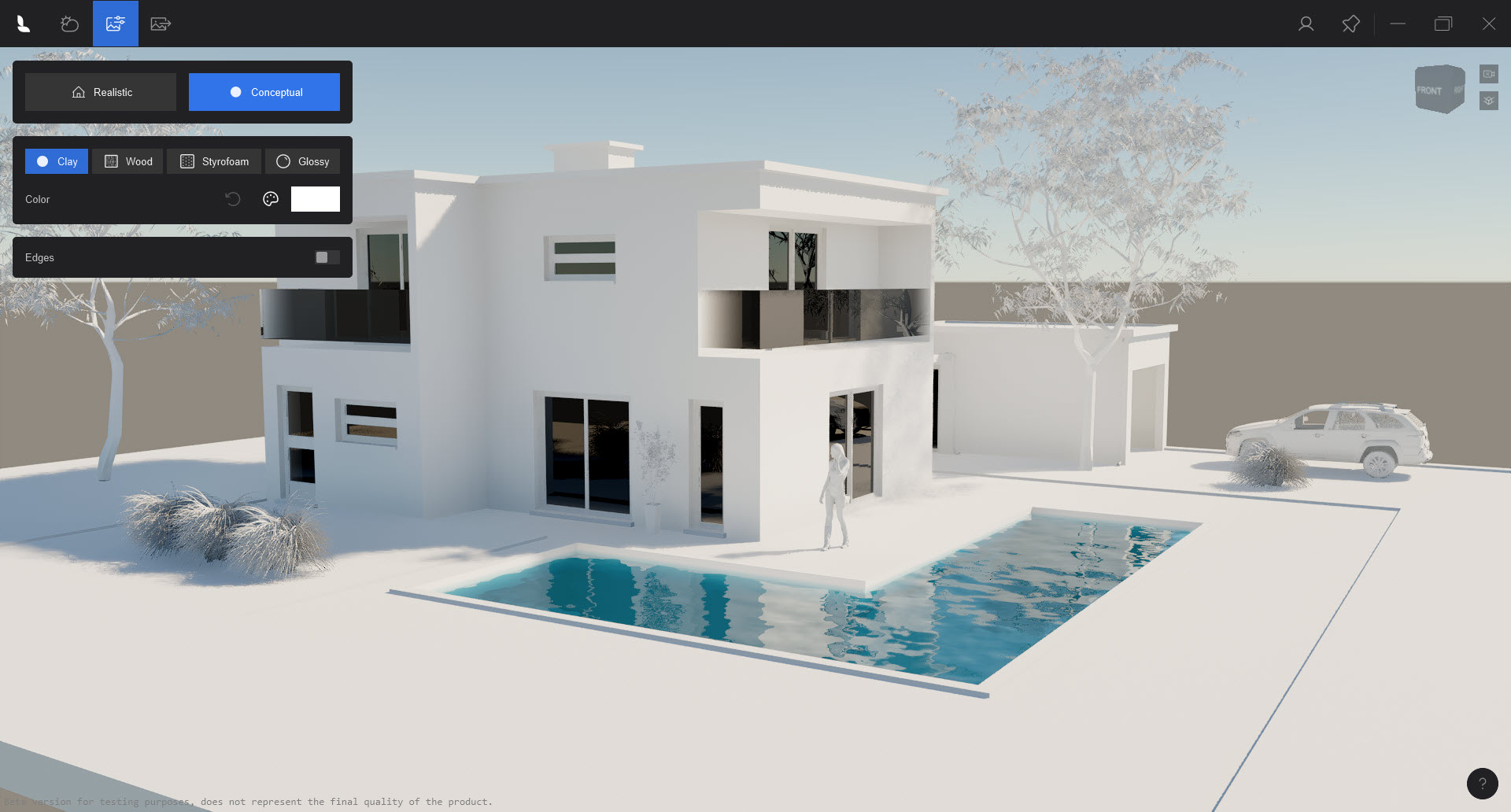

      LView Editor RlT Editor _maison _Conceptual.jpg

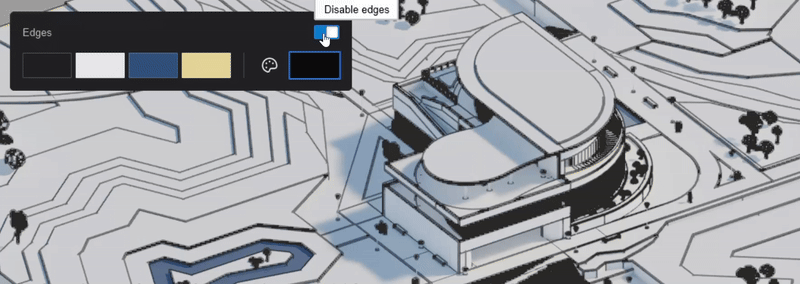

    • Include Edges as part of your style choices.

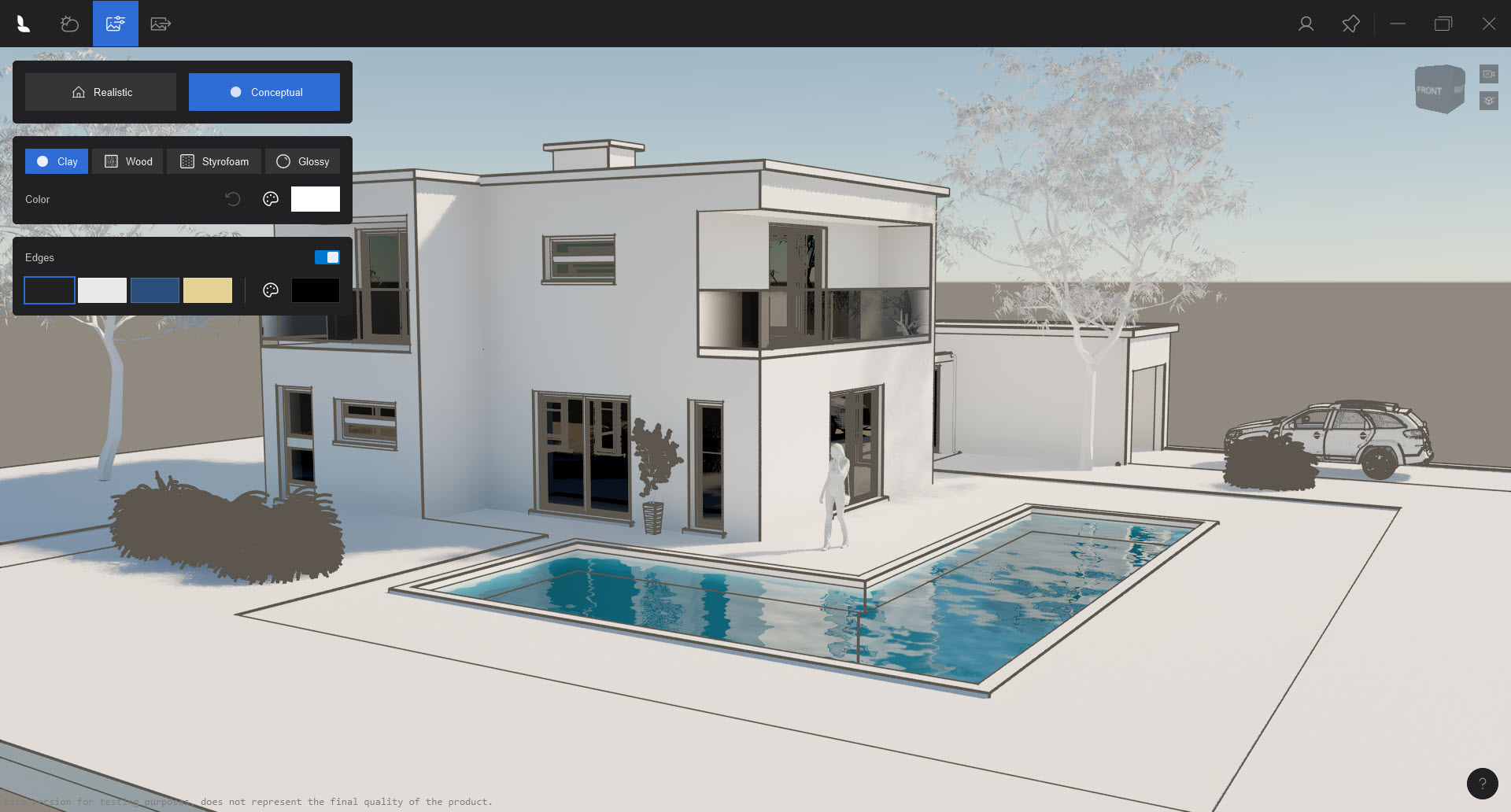

      LView Editor RlT Editor _maison _Conceptual with Edges.jpg


      edges (1).gif



5. Set your Output render options and Render:

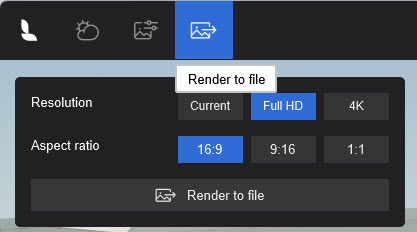

LView_Editor _Render to File.jpg

Make final output for your client as:

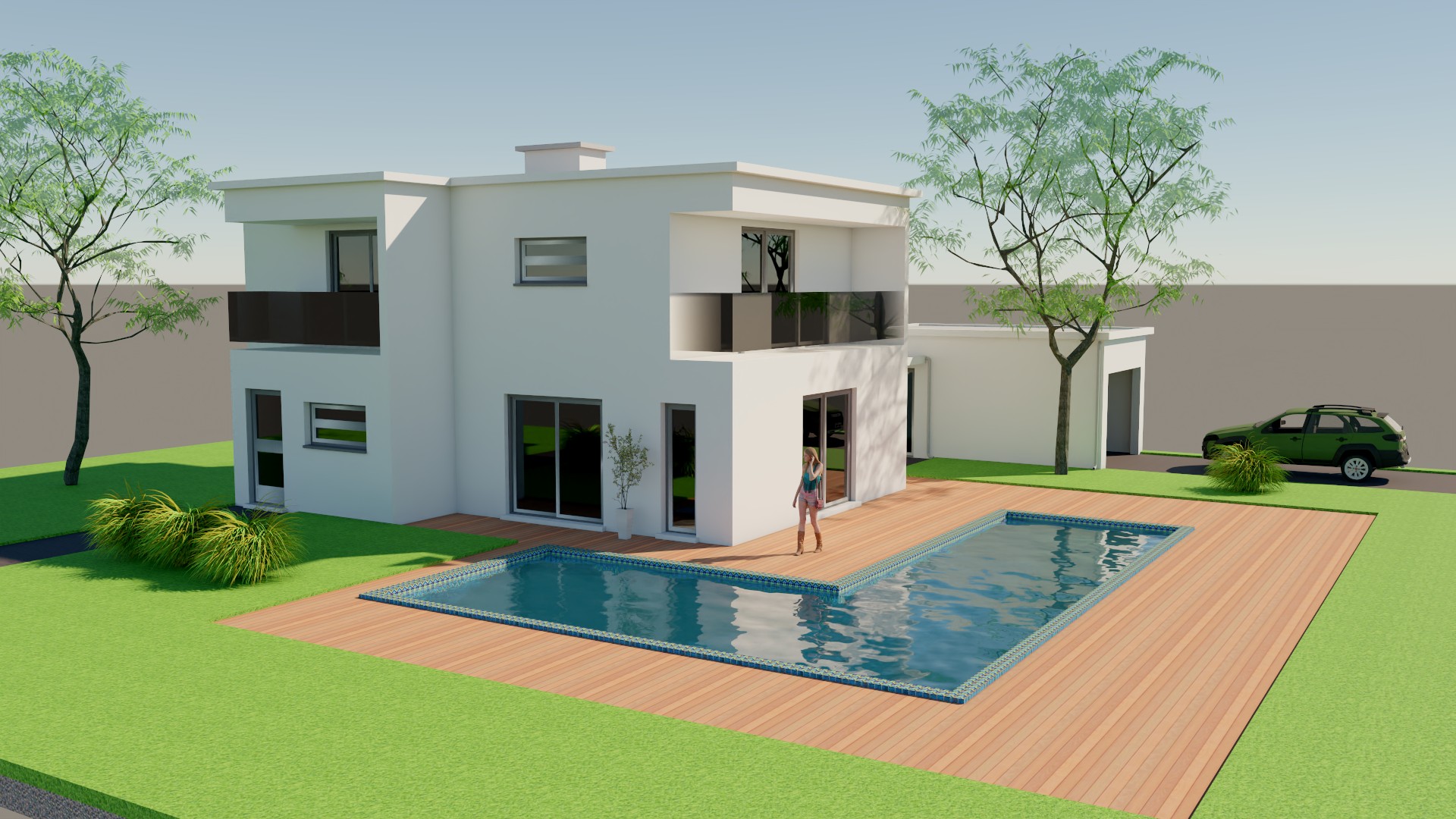

  • Realistic:

    render FullHD 16-9 maison _Realistic.jpg

  • Conceptual:

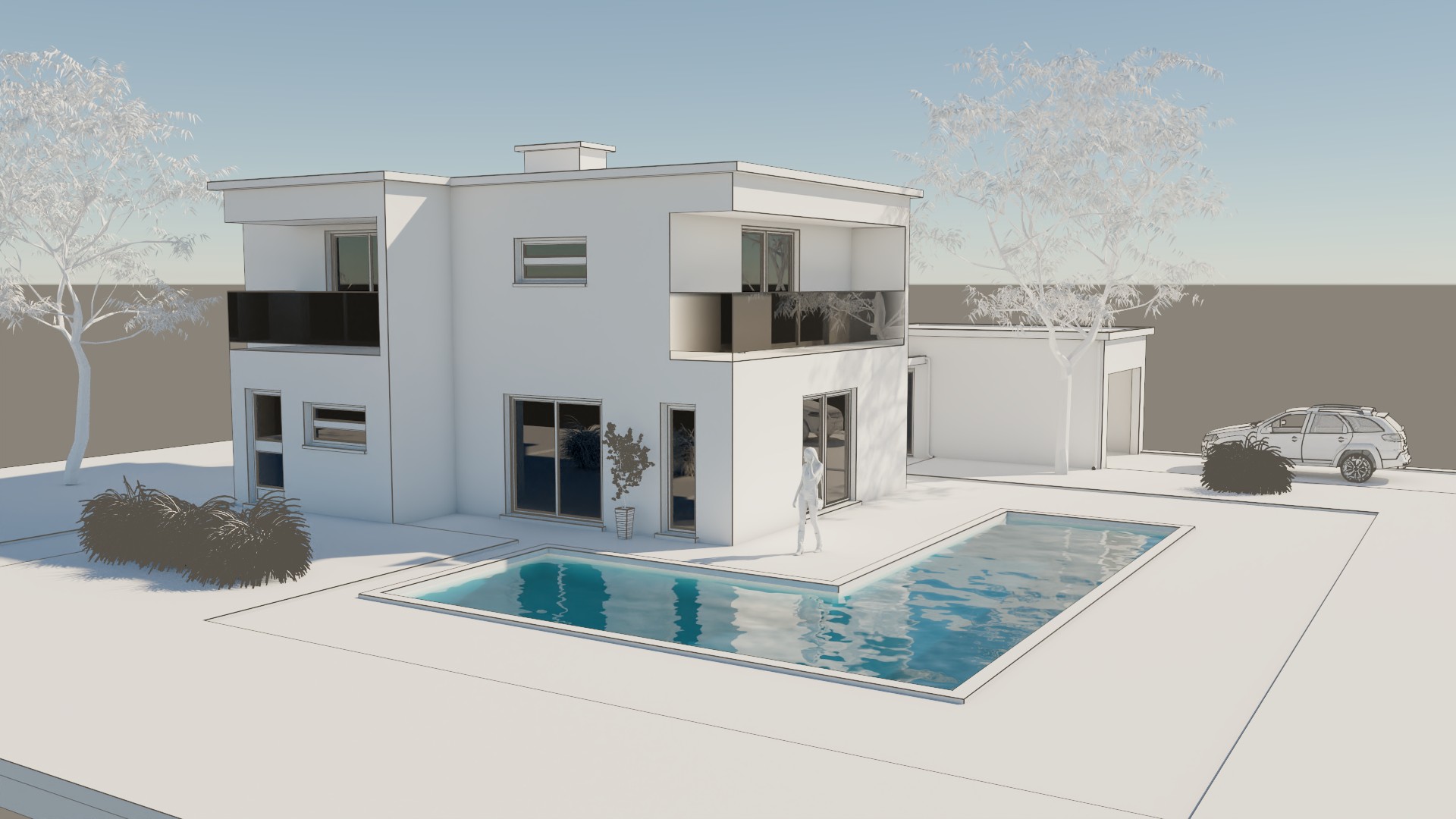

    render FullHD 16-9 maison _Conceptual-Clay-white.jpg

  • Conceptual With Edges:

    render FullHD 16-9 maison _Conceptual-Clay-white withEdges.jpg



6. Camera, Keyboard and Mouse actions:

6.1: Using the Camera options

LView Camera Cube-front_b.png  LView Camera Cube-front.png

Control the View of your model with the Camera Cube.

You can also use Keyboard and Mouse actions (see below).



LView Enable Camera Sync.png  LView Disenable Camera Sync.png

Sync the camera between SketchUp and Lumion View.



LView Camera Switch to Perspective.png  LView Camera Switch to Orthographic.png

Want to change the camera type: Perspective or Orthographic.





These are also shown in the Help screen (see below): LView Help button.png



6.2: What are the Keyboard and Mouse actions?

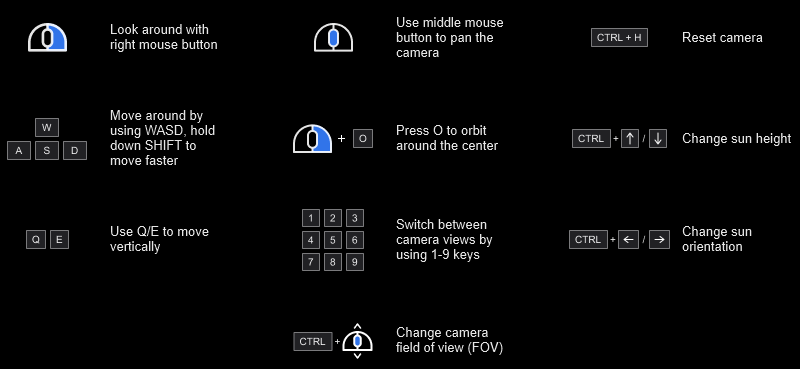

Simple ,easy to remember.  Enough key operations for you to navigate and control your camera.

From the Help screen.

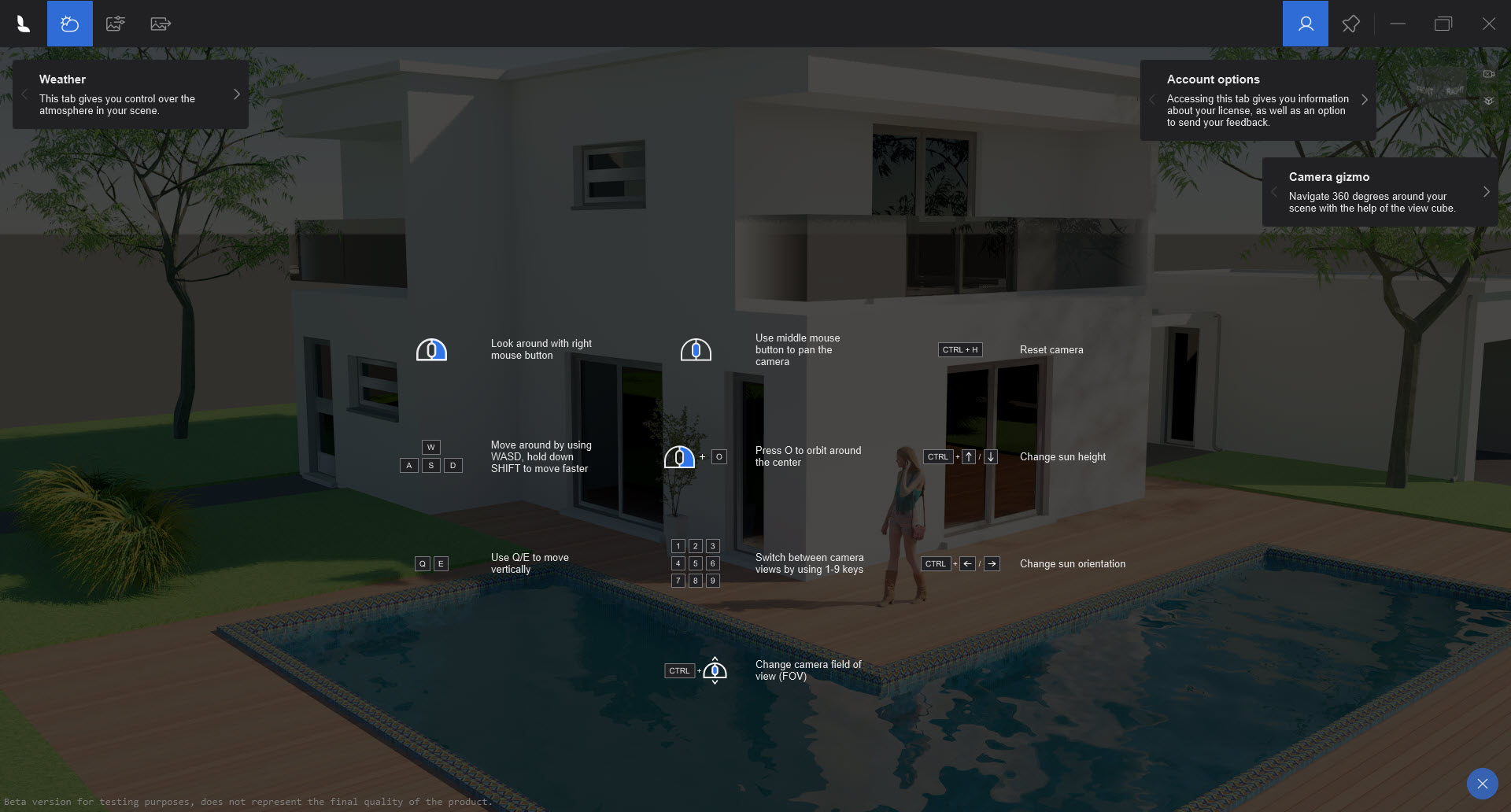

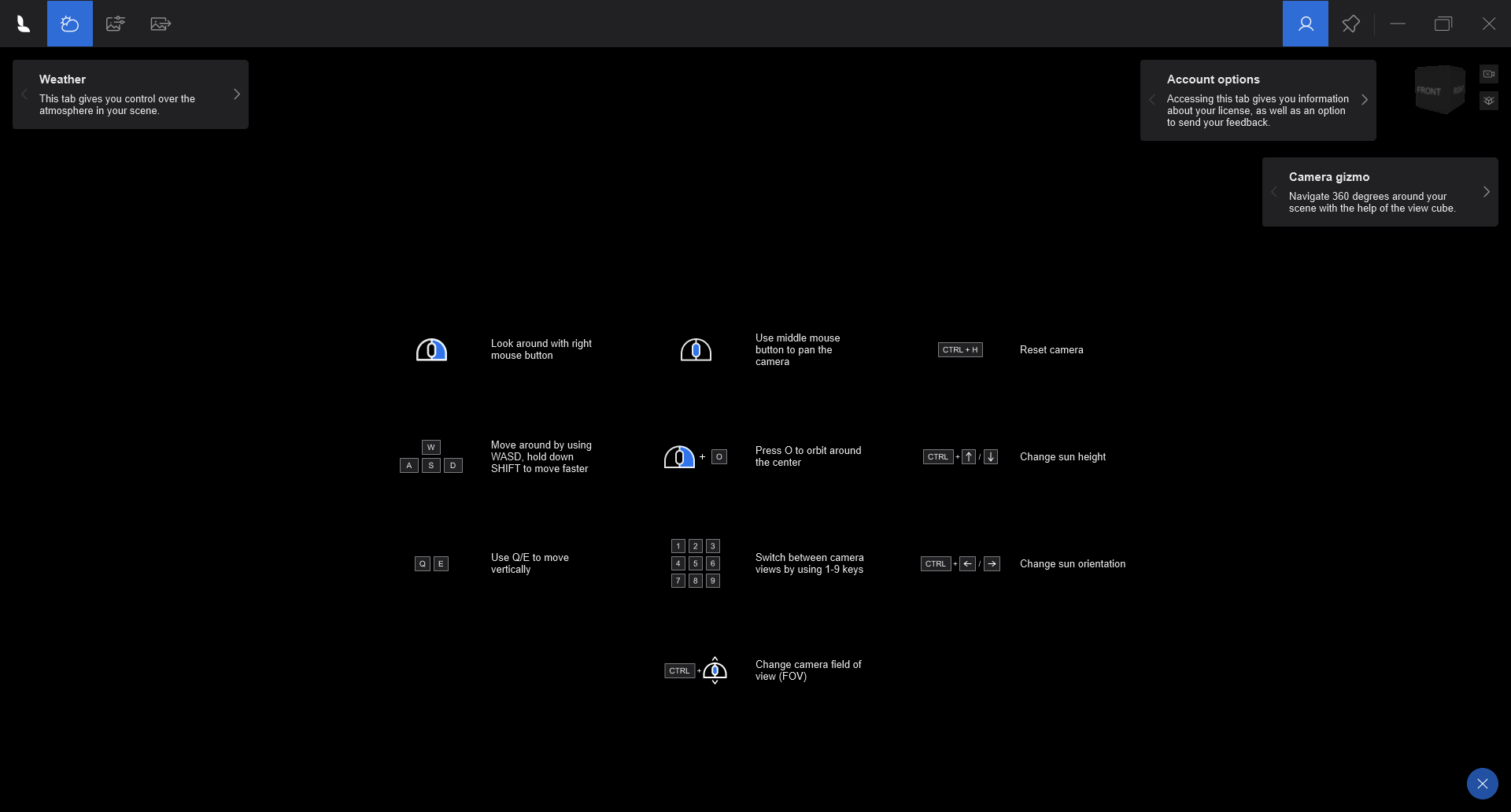

Keyboard and Mouose controls only xHelp screen - 50p.png

These are also shown in the Help screen (see below): LView Help button.png



For more on the camera, keyboard and mouse:



7. Other Editor tools on the View window bar:

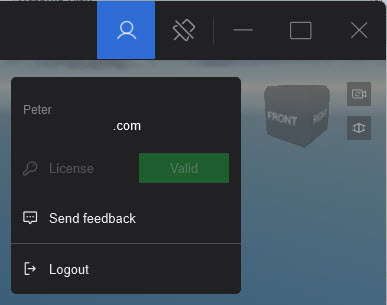

7.1: Account and Feedback

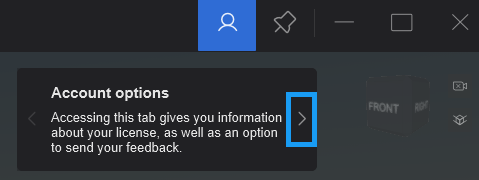

LView Window - WinView Tools - Account and Feedbaxk.png

LView Window Controls -LogIn and Submit Feedback_b.jpg



See the following article for details on your Account and Management:



7.2: Pin the Lumion View Window

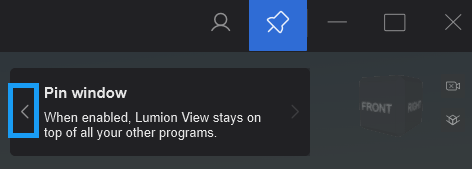

LView Windows Controls - PinWndow-OnTop.png    LView Windows Controls - UNPinWndow-fromOnTop.png

  • The window is locked to the top window.  this allows you to see Lumion View with other applications at full screen size.
  • You do not have to be actively using the Lumion View window for it to stay on top
  • You can use the Minimize button to see only other application windows.  Don't forget to Un-Minimize though, else it will sit in your Windows Taskbar,
  • You are not
  • Click to Pin
  • Click again to Unpin.



7.3: Manage the Window

LView Window - WinView Tools - WindowControls.png

LLWindowTool-Minimise the Window.jpg LView Window Controls -Maximise the Window.jpg LView Window Controls -Close the Window.jpg
  • Minimize, maximize, close/exit window(Stops Lumion View)

For further:



7.4: Help

Bottom right of Lumion View window.

LView Help button.png

One single, simple screen to help you when you need.

Help screen - full modelinBackground.jpg



Help screen - full.png

Notice that some Help items  show information about more than one feature:

Help - cycle any Help items_1.png Help - cycle any Help items_2.png



8. FAQ's

  • If you open a different model in Sketchup, it will automatically Stop Lumion View and close the Lumion View window.
