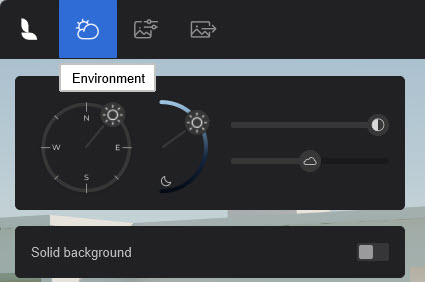

1. Edit the Environment settings:
Edit the Environment settings for:
1.1: Sun and Sky settings

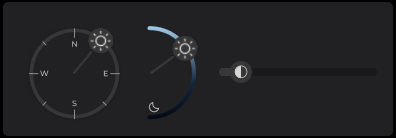

1.2: Set the Sun Height and Heading:
For day or night time.

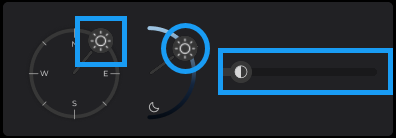

Drag the sun icon around on the Heading or Height sliders:
Move the Brightness slider to change the strength of the suns light.
1.3: Edit the amount of Sky clouds.
Version Note:
Clouds has been temporarily disabled.
As of version Lumion View for SketchUp 2025.0.0 (2503191919).
A slider to control the amount of clouds in the Sky will be retuned during the Preview Release.

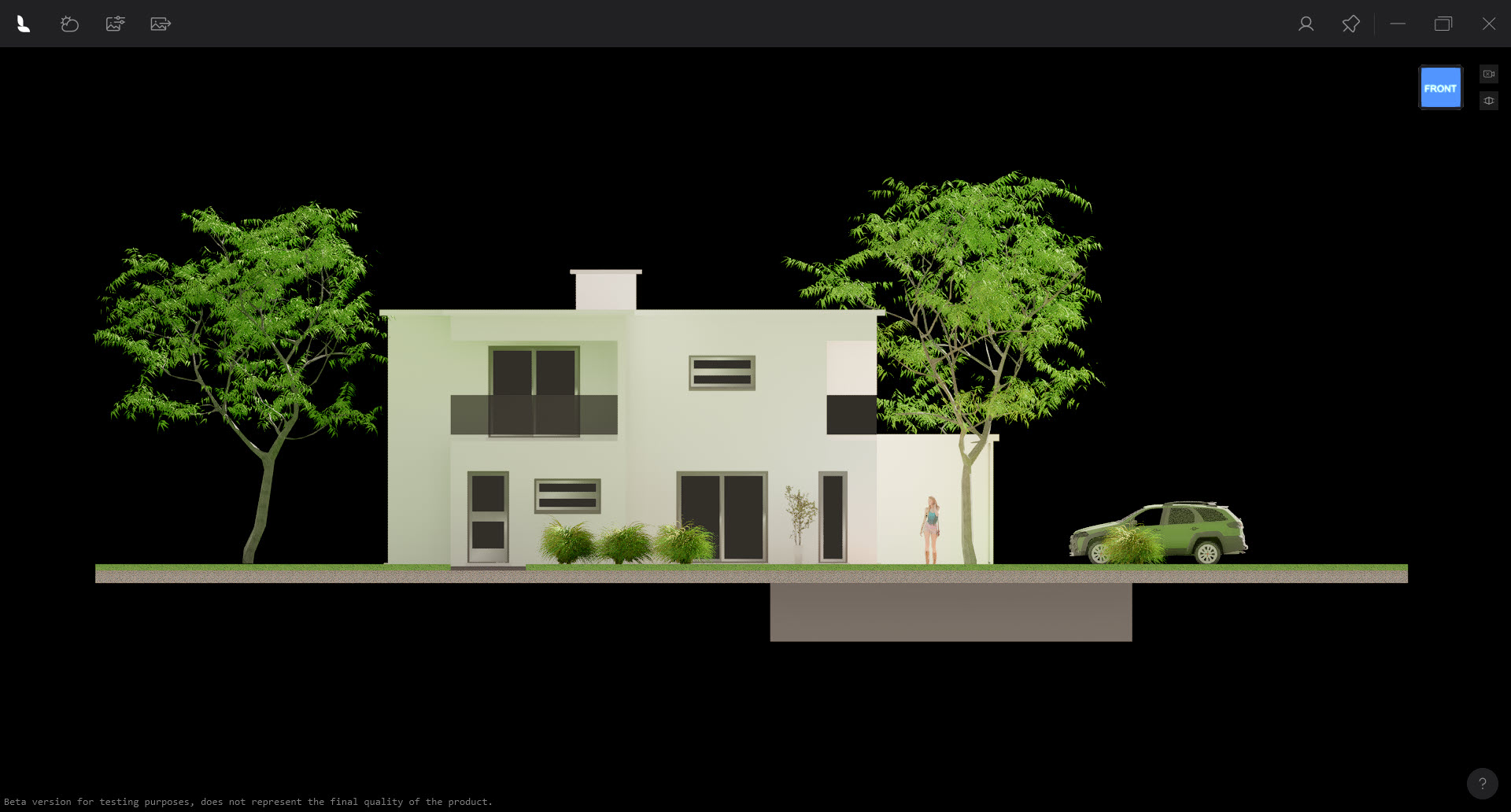

2. Use a solid background for a difference in style than a sky.

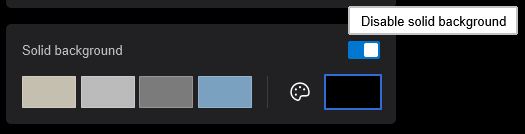

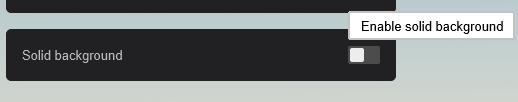

By default the Solid Background (color) is not Enabled until you click the button. When Disabled, Lumion View shows the real-world Sky and Clouds.
The color chosen, will be retained if you disable the solid background. Including when you have a new session of Lumion View (Stop then Start).
If you choose a single color background your Sky and Sun settings will still be used to generate correct lighting for the Ray Trace render. However there will be adjustments for the Exposure from the single color. Along with expected changes in the reflections.

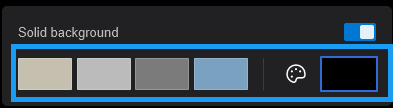

2.1: Background Color Choices
Choose from a palette of four (4) set colors.

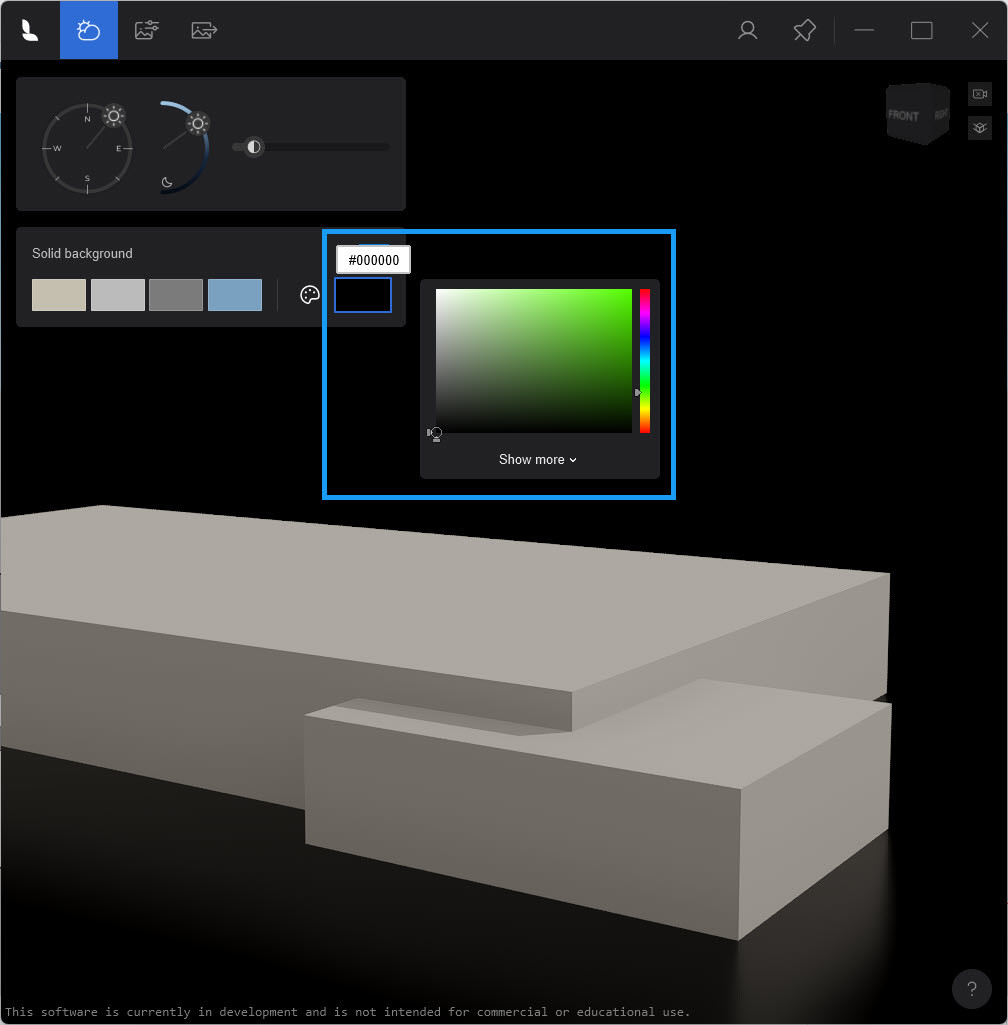

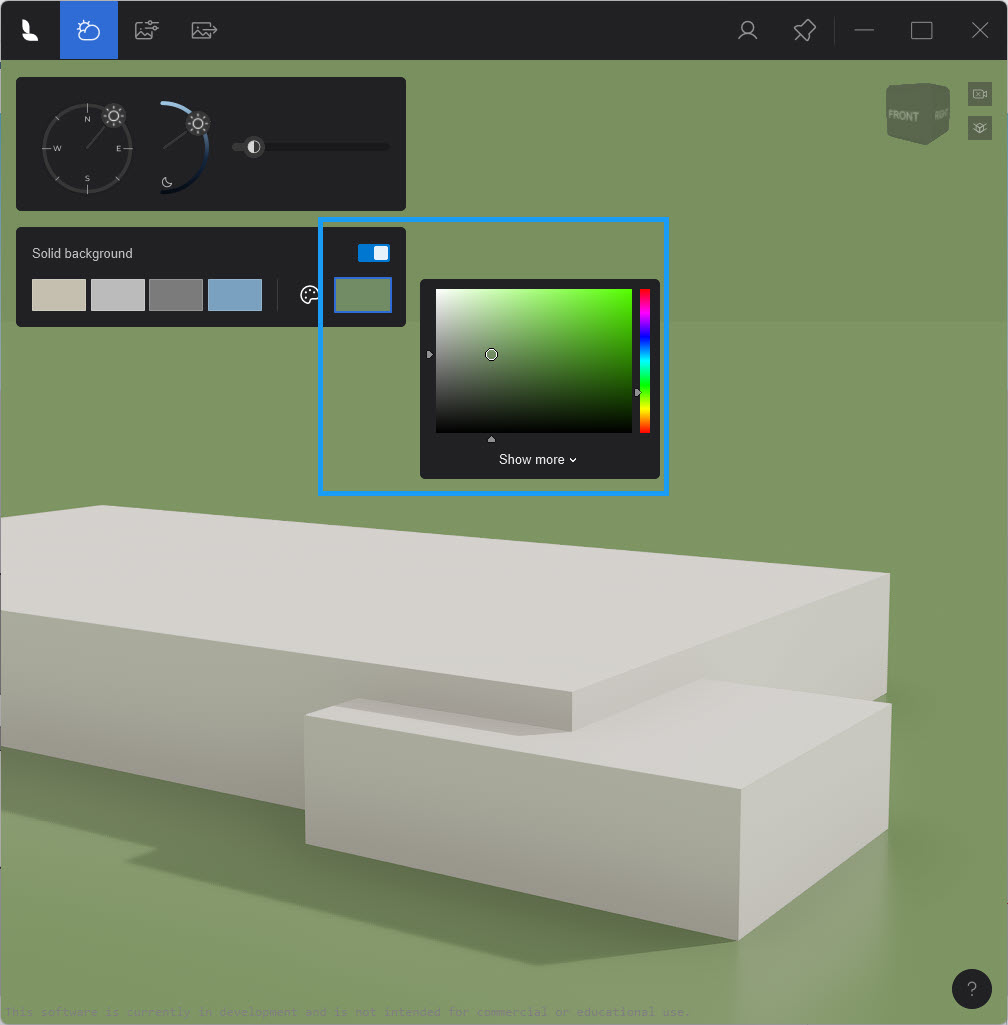

Or select your own Color from the Color Palette
