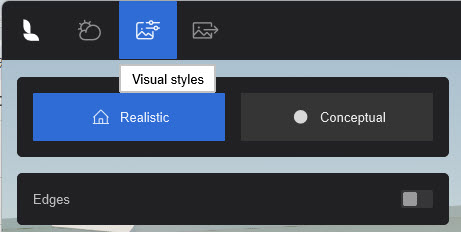

1. Visual Styles:

How do you want to communicate the look and feel for your design to the client?

Set one of two overall Styles:

• Realistic.
• Conceptual.

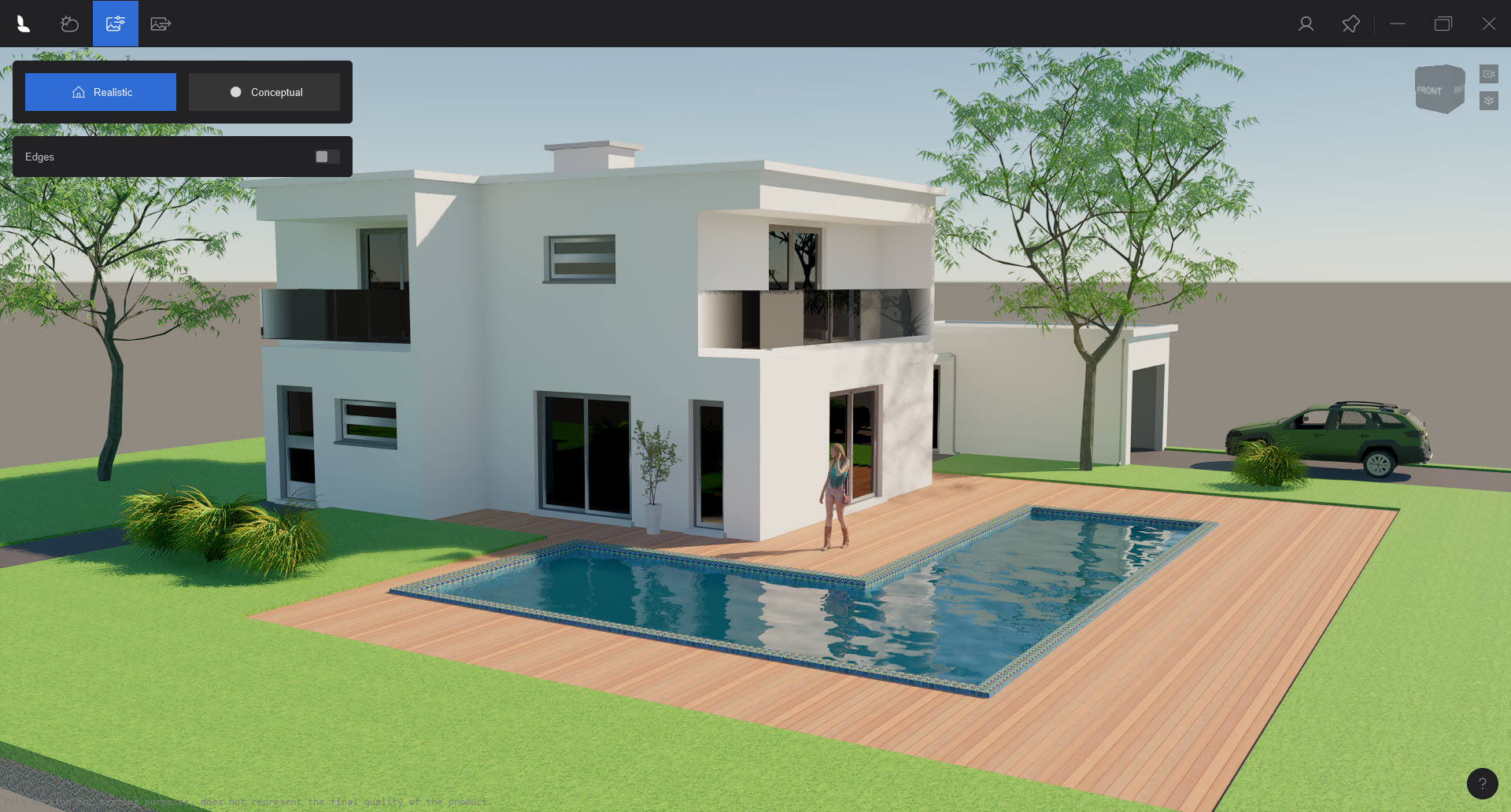

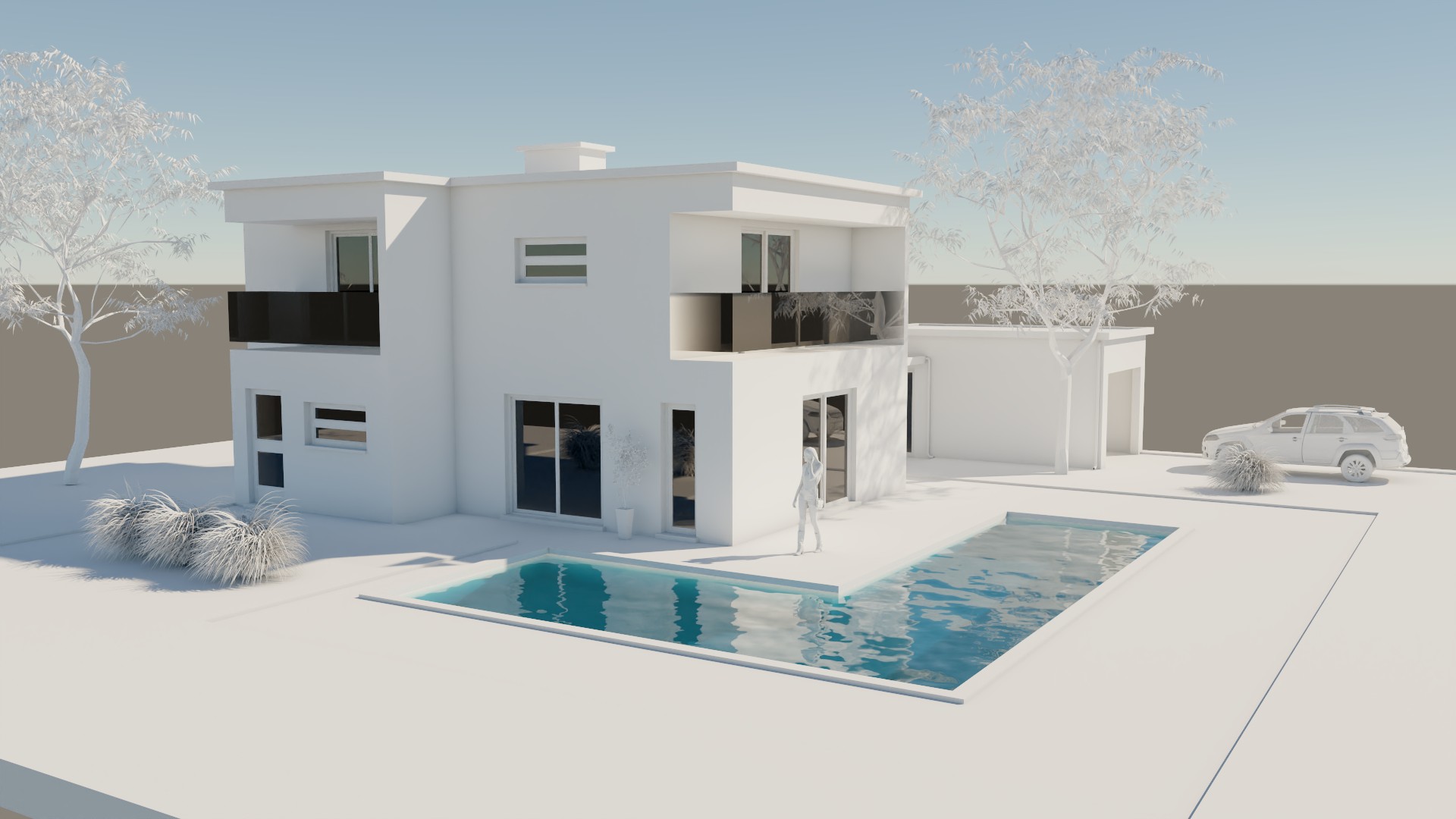

1.1: Realistic

1.2: Conceptual

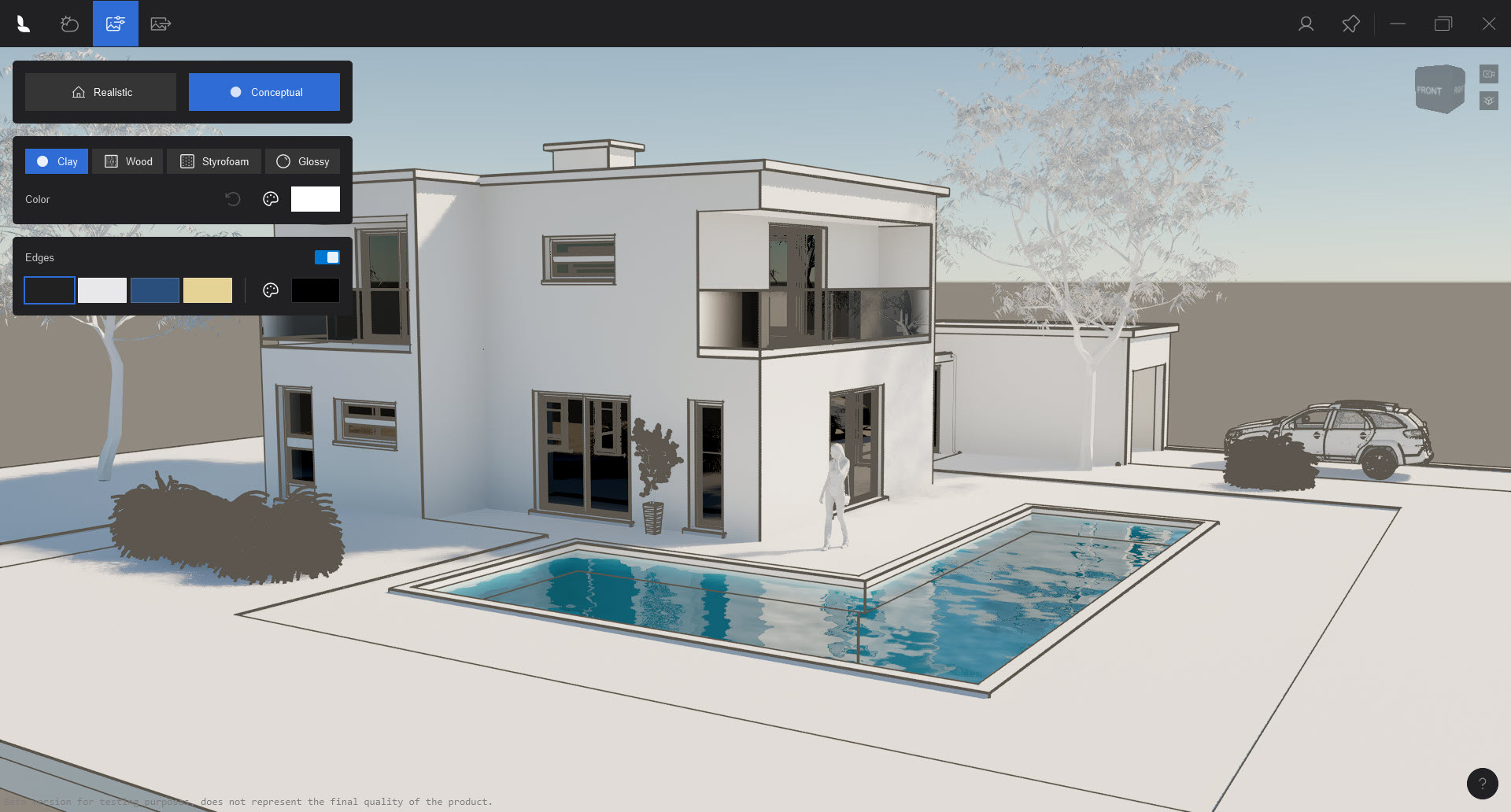

Examples of the options below after adding Edges.

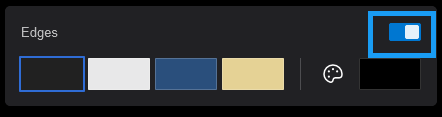

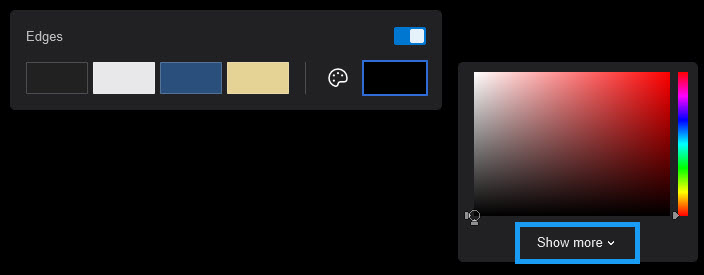

2. Include Edges:

Include Edges as part of your style choices.

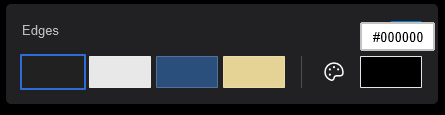

Use one of the four Colors:

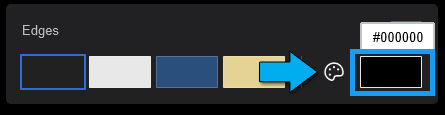

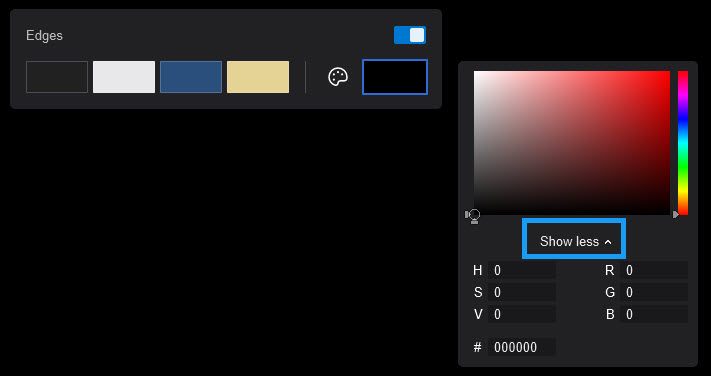

Or use the Color Palette:

3. Conceptual Styles - Options:

Note we show here screencaptures of the real time Ray Traced window for the setting.  Final render may differ only slightly.

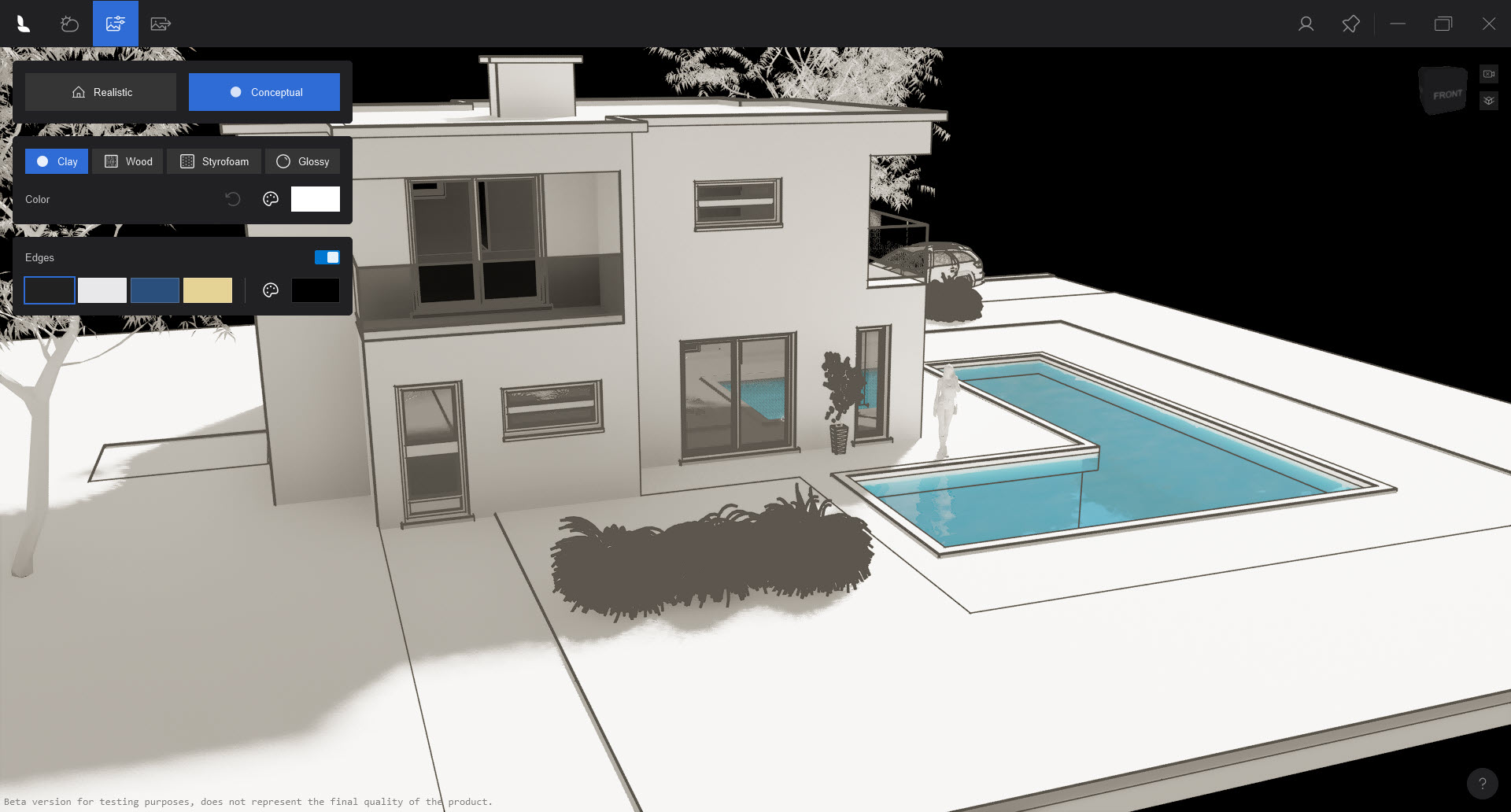

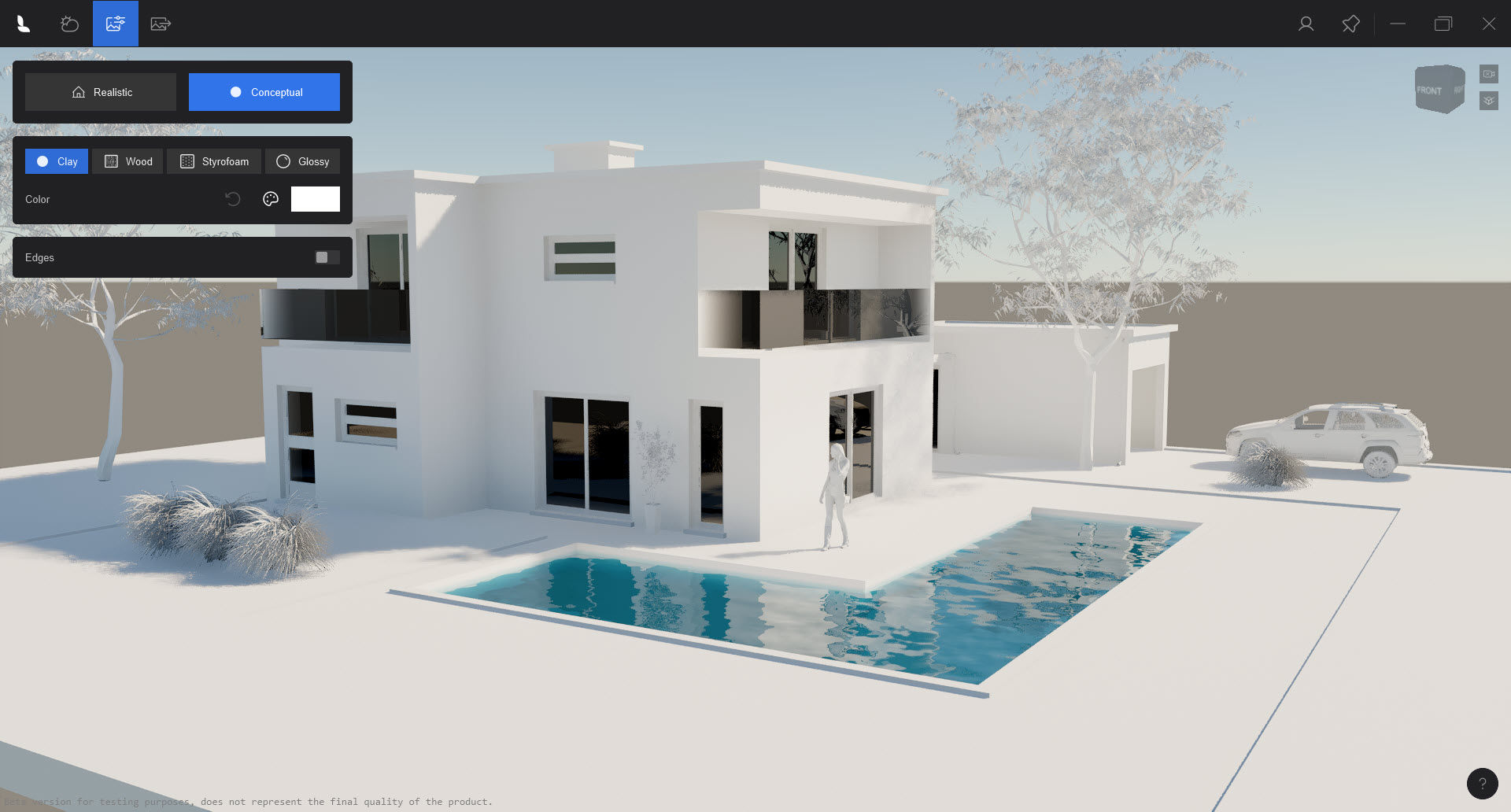

3.1: Conceptual - Edges - Clay

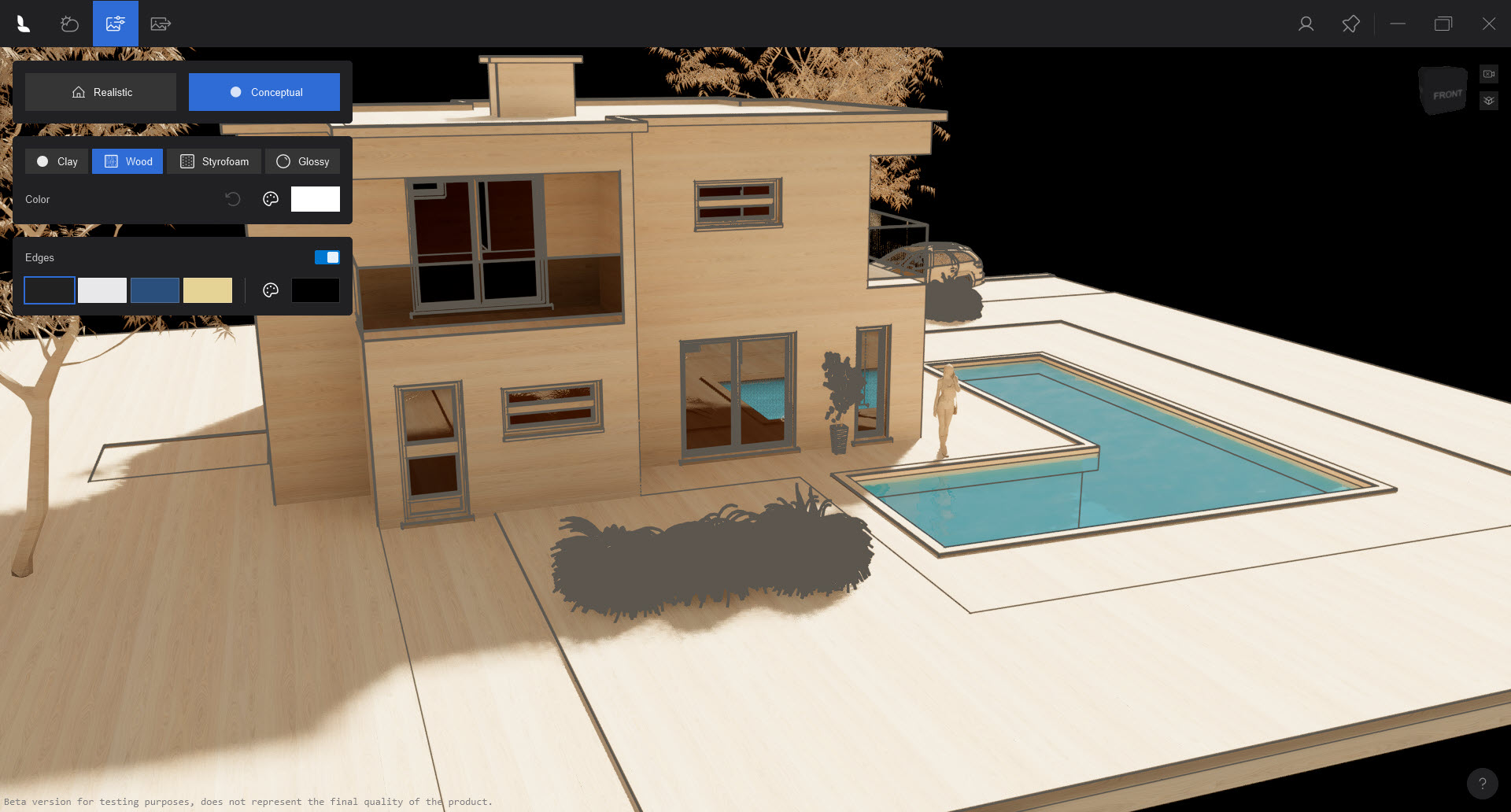

3.2: Conceptual - Edges - Wood

3.3: Conceptual - Edges - Styrofoam

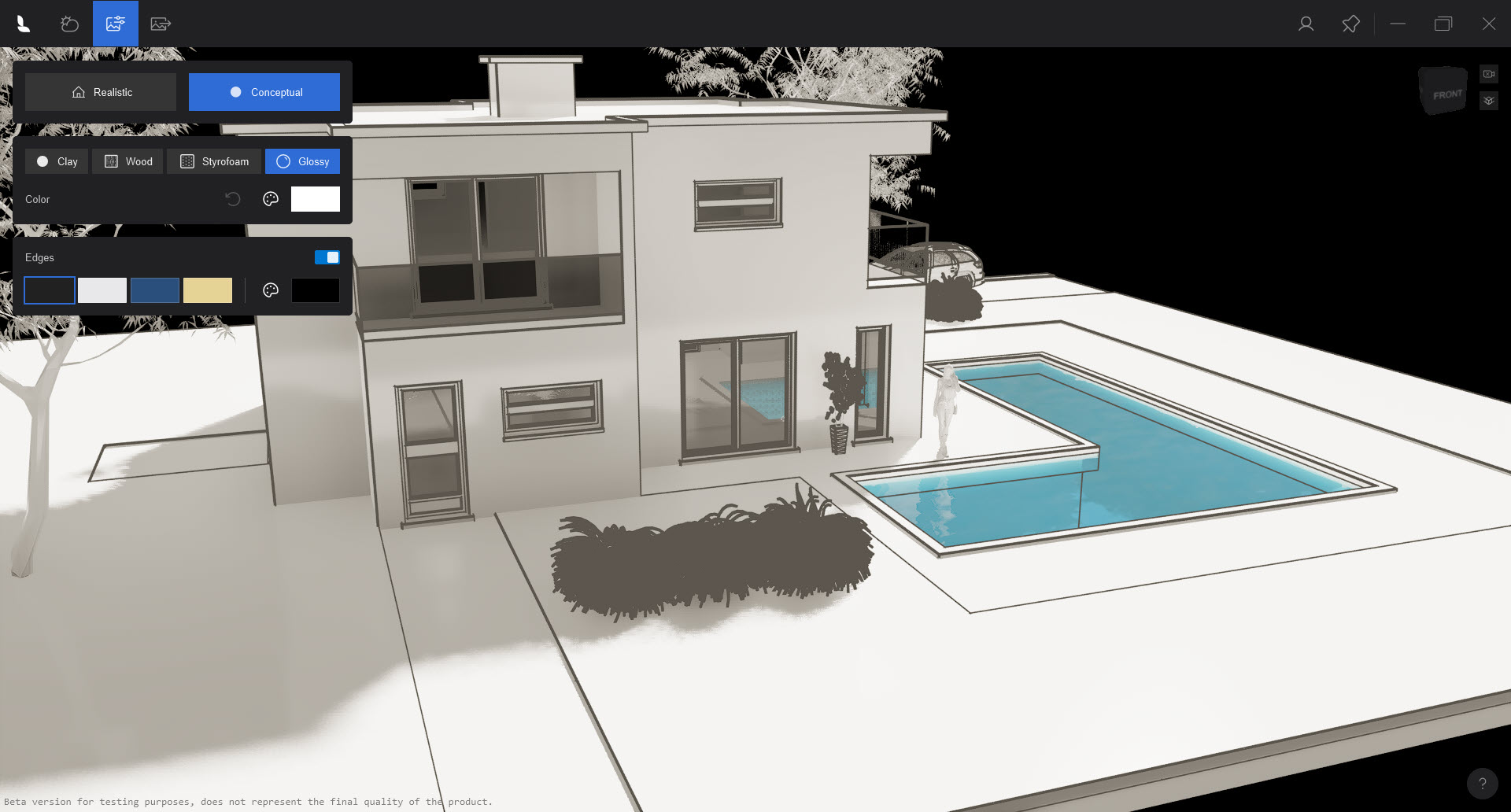

3.4: Conceptual - Edges - Glossy
