[SR] Model missing when importing in Revit (multiple Survey Points)

1. Question

1.1 A user inquires about their model disappearing once imported in Revit.

1.2 User quote:

Where to start? In short... when I now try to LiveSync or export then import this Revit model it simply disappears in Lumion. The insertion point is there with the file name along with a small bounding box but no model. Initially the Revit model came in fine and I've been able to work on it quite a bit but at some point when I tried toLiveSync or import an updated .dae I got the message that the import file was too large. ...

2. Reply

Note: This is not a standard reply, but it shows how to approach this specific situation. To deem if this reply is appropriate, open the .RVT file provided by the customer and check that there are indeed multiple Survey points.

2.1 Answer [adapt by case]:

Sorry to hear about your issue. Thanks for contacting us.

If we import (DAE or LiveSync) as we had been doing using Base Point the model is always visible.

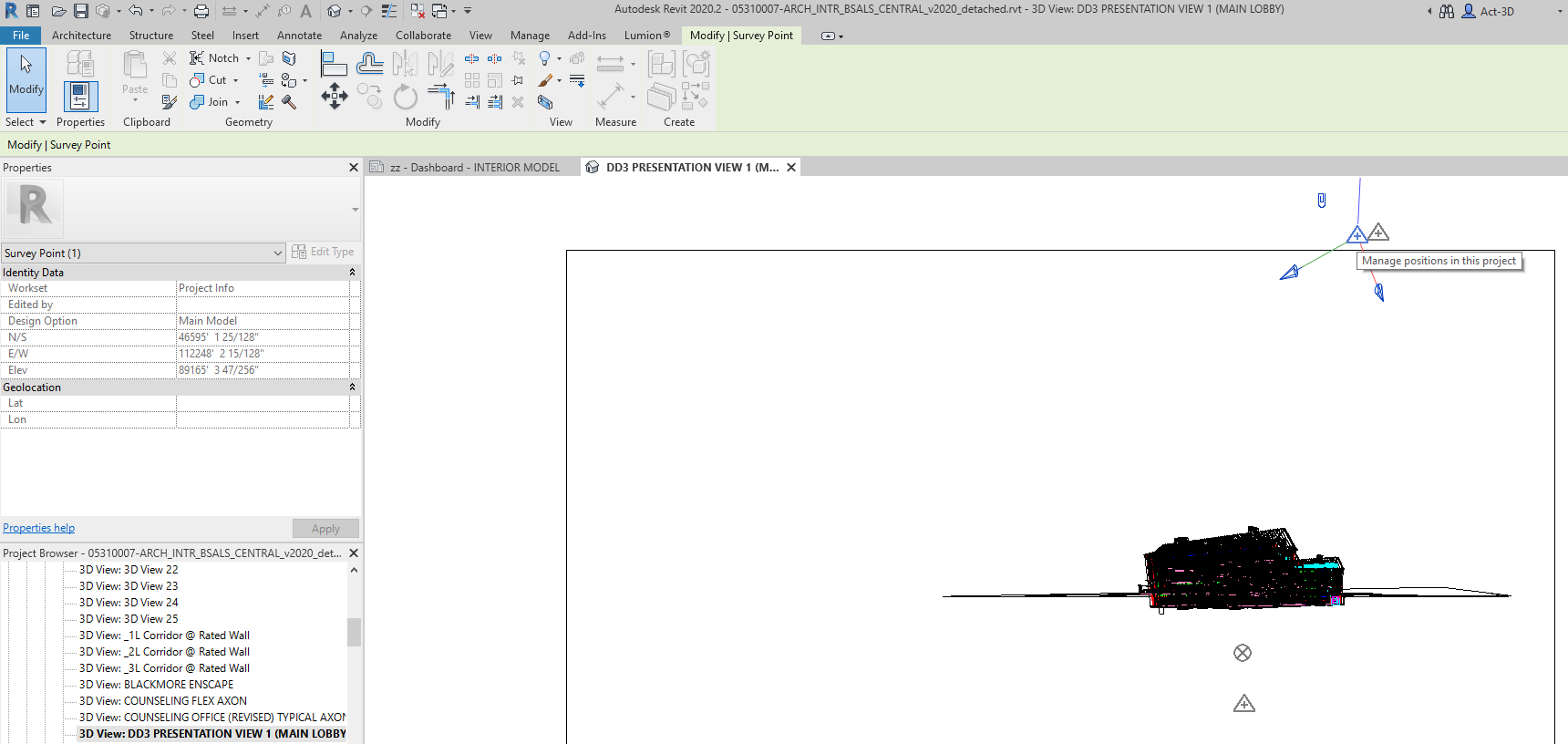

If we import using Survey Point then it is not visible. There are multiple Survey Points when all files (excluding the EQP one) are linked. As mentioned in the prior reply, one of those Survey Points is extremely far away.

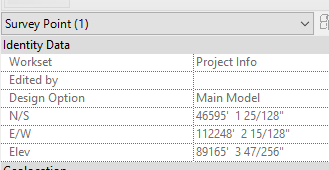

One is named Survey Point (1)

This results in the model being about 112000 feet = about 34 km away.

Unfortunately, our plugin does not provide/expect the option of more than one Survey Point, so there is no option to select a different one. Our apologies. We have reported this to the developers to consider that there could be multiple points to select as a future enhancement.

Given that the first import of the model used DAE and that it was visible, it is then likely that the Base Point was used in the Export settings. Later on, when LiveSync was used, the setting must have been at Survey Point. So that and subsequent LiveSync imports resulted in the far away model. The later DAE Exports must have been at Survey Point, as Base Point would have reconstituted the model close to 0,0,0.

The use of the Survey Point far away explains why the model file size was as expected, and why the bounding box appeared as an inverted shape (deep and narrow).

So, to move forward on this we suggest:

Start a new .LS Project.
Set the LiveSync setting to use Base Point. Presume there is no requirement to be at Survey Point?
Import it using LiveSync using Base Point.

Let us know if anything is unclear.
