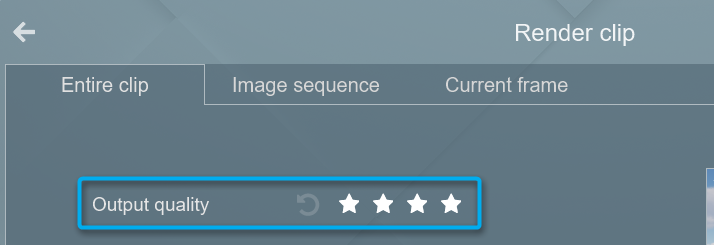

1. Lumion 2023 and newer

1.1: For Rasterization rendering

1 Star: Draft quality:

Everything on, no anti-aliasing.

2 Star: Good quality:

Everything on, 4x anti-aliasing.

3 Star: Production quality:

Everything on, 8x anti-aliasing.

4 Star: Production quality:

Everything on, 16x anti-aliasing.

1.2: Samples rendered for Ray Traced rendering

At the bottom of the rendering screen, Lumion shows two values.

Example:

Say for example you chose a Sample in the Ray Tracing Effect of 512.

1. The first number is the total Samples from the Ray Tracing Effect (example 512).  It increases from 0 to the number of Ray Tracing Effect - Samples.

2. The second number is the calculated maximum Samples for a render at the selected Output Quality you have chosen.

For your 2 Star example: there are 4 samples AA, and the quality to render at ratio is 16/4 = 4.  The maximum number of samples to render is: 512/4 = 128.


Ray Tracing: 512 Samples, Output Quality Stars selected: 4 (16 AA) = 512 samples.

Ray Tracing: 512 Samples, Output Quality Stars selected: 3 (8 AA) = 256 samples.

Ray Tracing: 512 Samples, Output Quality Stars selected: 2 (4 AA) = 128 samples.

Ray Tracing: 512 Samples, Output Quality Stars selected: 1 (0 AA) = 1 sample.

When rendering with the Denoiser options then see this article, Section 2.4.3: Summary of Denoiser Options:

• Knowledge Base:  How do you use the new Ray Tracing Effect?

For 360 Panorama see the options when wanting to use the Denoiser:

• Knowledge Base:  How do you render using Ray Tracing for 360 VR Panorama?

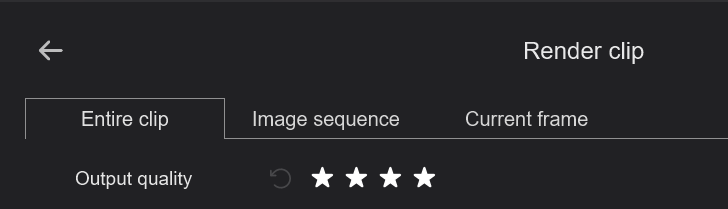

2. Lumion 12:

1 Star: Draft quality:

Everything on, no anti-aliasing.

2 Star: Good quality:

Everything on, 4x anti-aliasing.

3 Star: Production quality:

Everything on, 8x anti-aliasing.

4 Star: Production quality:

Everything on, 16x anti-aliasing.

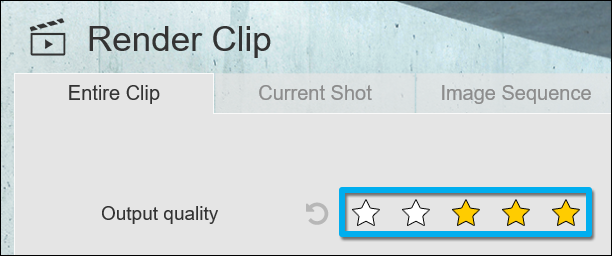

3. Lumion 8 to 11:

1 Star quality: Draft quality

Sky, sun, and clouds will remain static. Rendering with a Sun Effect or a Sun Study Effect requires 2 Star quality (or better) to animate the sun position. The following features and Effects will be rendered at draft quality:

• Anti-aliasing.
• Shadows.
• Depth of Field Effect.
• Motion Blur Effect.
• Global Illumination.
• Hyperlight Effect.
• Sky Light 2 Effect.
• Volume Clouds Effect.
• Leaves on trees/plants.
• Semi-transparent materials.

2 Star quality: Good quality

The following features and Effect will be rendered at draft quality:

• Anti-aliasing.
• Shadows.
• Depth of Field Effect.
• Motion Blur Effect.
• Global Illumination.
• Hyperlight Effect.
• Sky Light 2 Effect.
• Volume Clouds Effect.
• Leaves on trees/plants.
• Semi-transparent materials.

3 Star quality: Production quality with 4 sub-samples

The following features and Effects will be rendered with 4 sub-samples per frame:

• Anti-aliasing.
• Shadows.
• Depth of Field Effect.
• Motion Blur Effect.
• Global Illumination.
• Hyperlight Effect.
• Sky Light 2 Effect.
• Volume Clouds Effect.
• Leaves on trees/plants.
• Semi-transparent materials.

4 Star quality: Production quality with 8 sub-samples

The following features and Effects will be rendered with 8 sub-samples per frame:

• Anti-aliasing.
• Shadows.
• Depth of Field Effect.
• Motion Blur Effect.
• Global Illumination.
• Hyperlight Effect.
• Sky Light 2 Effect.
• Volume Clouds Effect.
• Leaves on trees/plants.
• Semi-transparent materials.

5 Star quality: Production quality with 16 sub-samples

The following features and Effects will be rendered with 16 sub-samples per frame:

• Anti-aliasing.
• Shadows.
• Depth of Field Effect.
• Motion Blur Effect.
• Global Illumination.
• Hyperlight Effect.
• Sky Light 2 Effect.
• Volume Clouds Effect.
• Leaves on trees/plants.
• Semi-transparent materials.

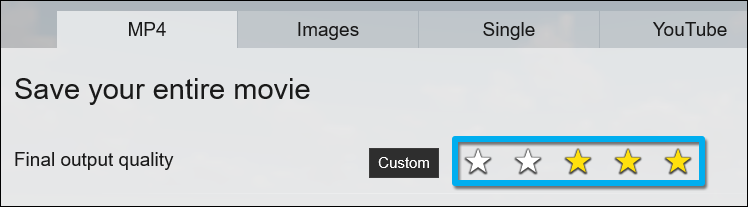

4. Lumion 7.5 and older:

The 5-star system that is described in section 2 also applies to Lumion 7.5 and older versions.

In addition, please note the following:

When rendering Movies, the clouds, moon, and stars are rendered at a lower quality setting by default, regardless of the Final output quality setting.

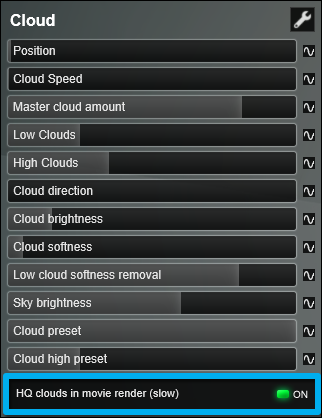

To set the sky to the best possible render quality when rendering Movies, please add a Cloud Effect and turn on HQ Clouds in movie render (slow). Please note that this will prolong the time it takes to render your Movie.

Note: Rendering in Panorama Mode was also subject to some further limitations, even at the highest Star Quality, of which Effects were possible for 360 rendering for versions up to V11.

See Also:

• Knowledge Base:  How do you render a higher resolution Raytraced Image?
