1. Examples:

It looks like some parts of the interface are not showing and you are unable to access Lumion features or content.  For example:

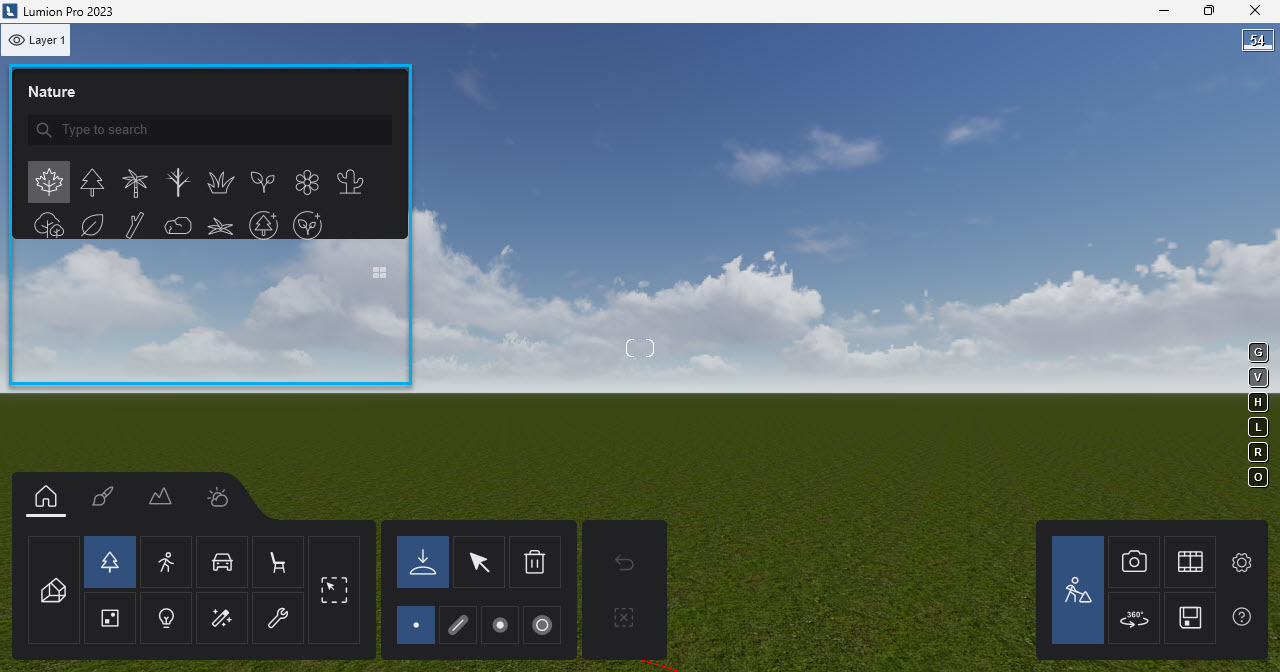

The plants and trees are not showing when you click on one of the buttons for a subcategory of the plants and trees.

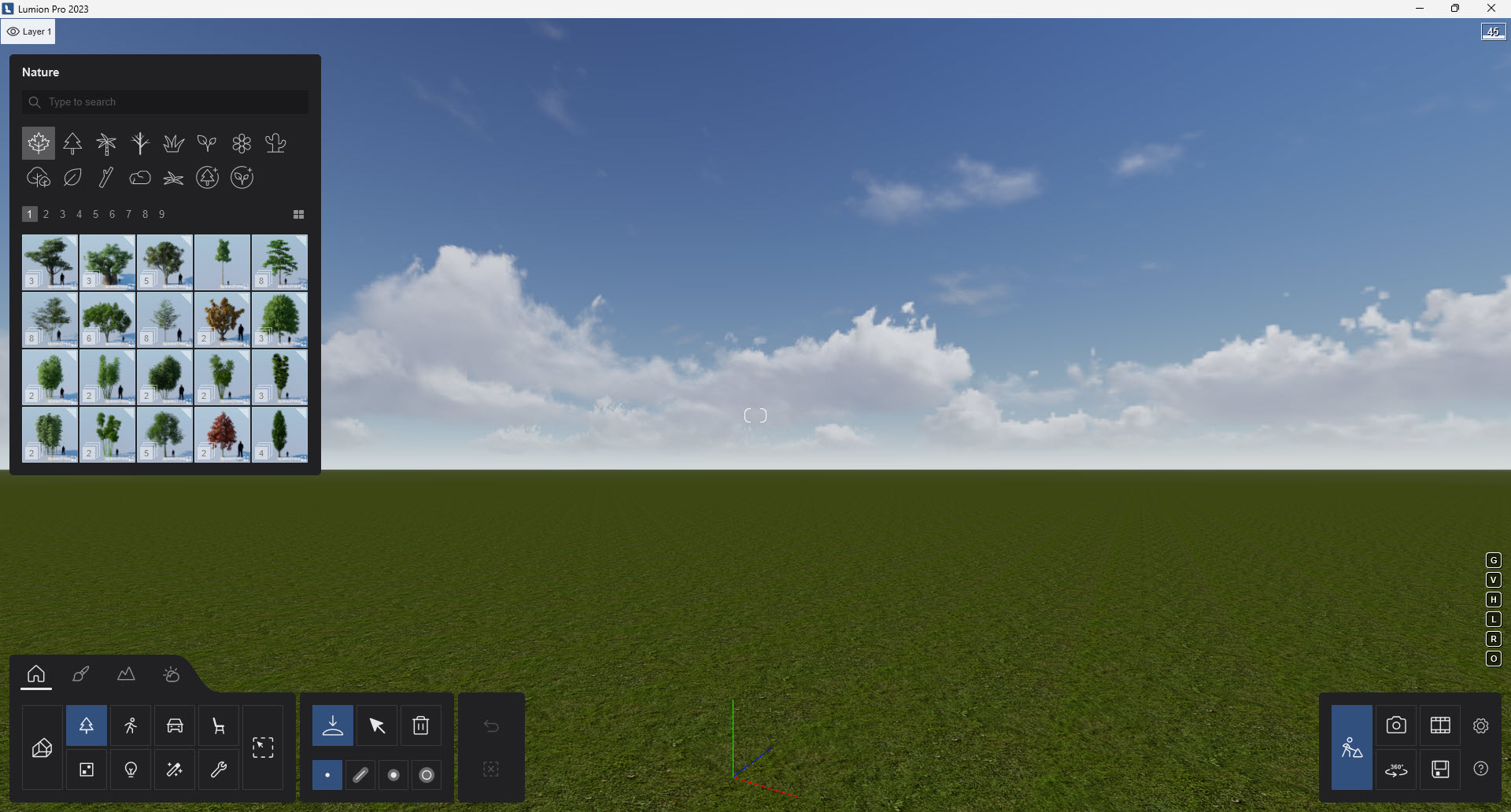

The full-screen view looks like this:	What you should be seeing:

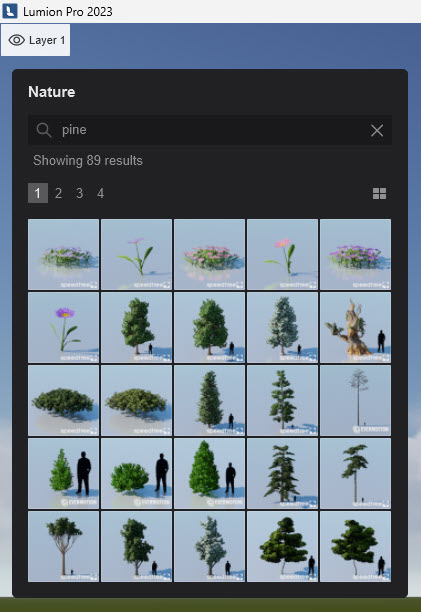

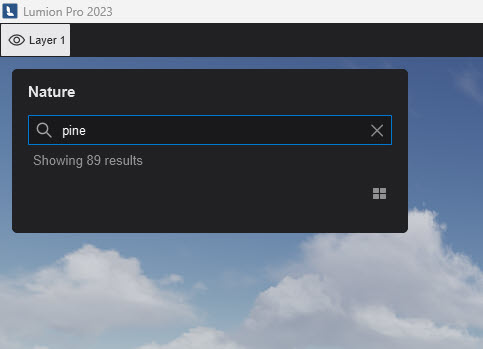

You enter a Search word to locate plants but there are no plant thumbnails showing below the Search word.

It looks like this:	What you should be seeing:

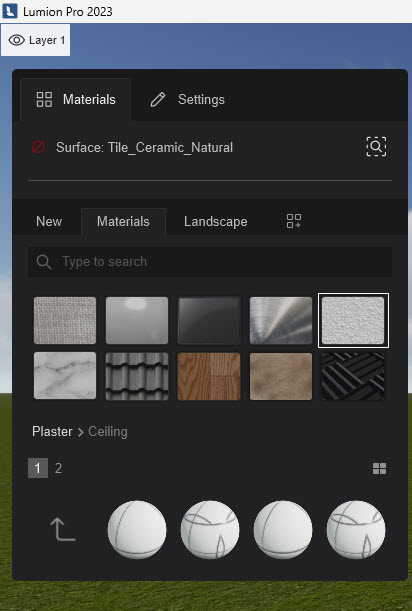

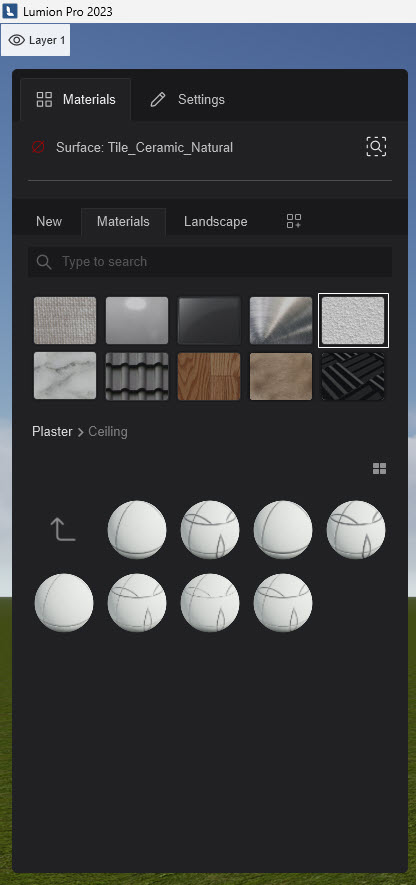

In the Materials Library, not all the materials are showing or they are on other pages.

It looks like this:	What you should be seeing:

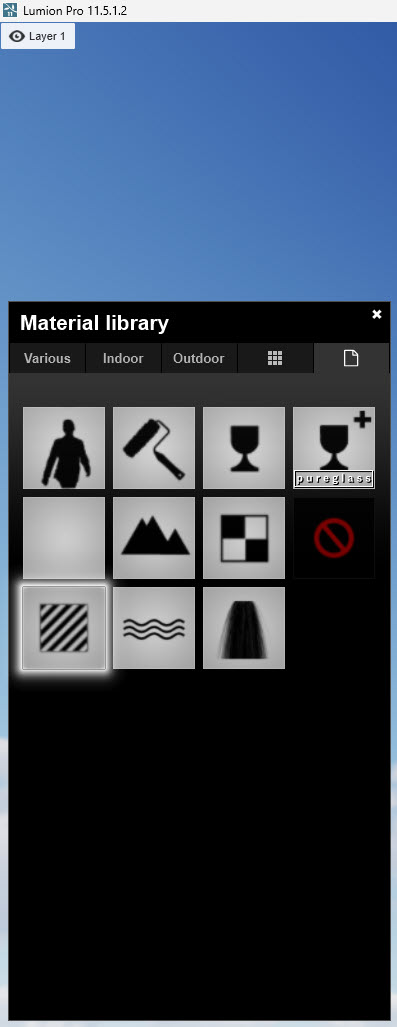

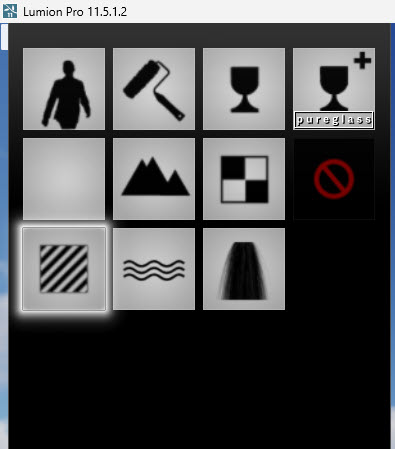

Older versions prior to Lumion 2023: The Material Tabs for the different types of Materials are missing.

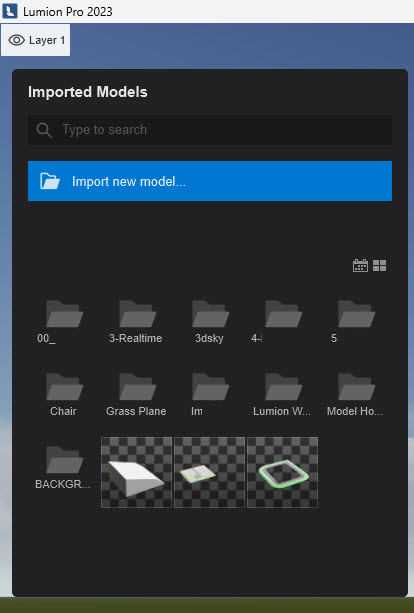

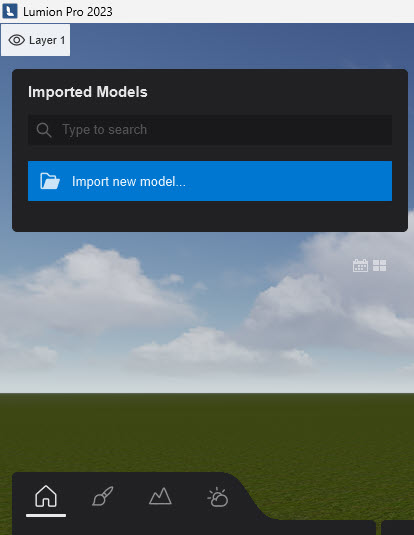

You have imported one or more models but those are not showing as thumbnails or sub-Category thumbnails.

It looks like this:	What you should be seeing:

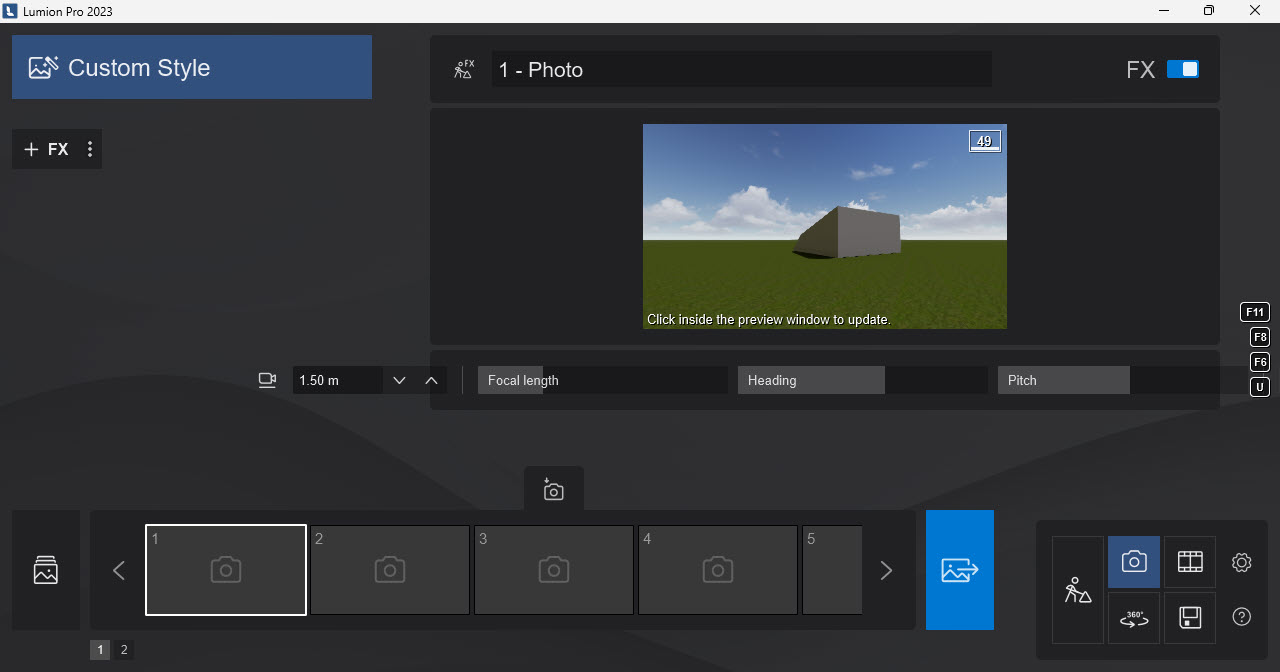

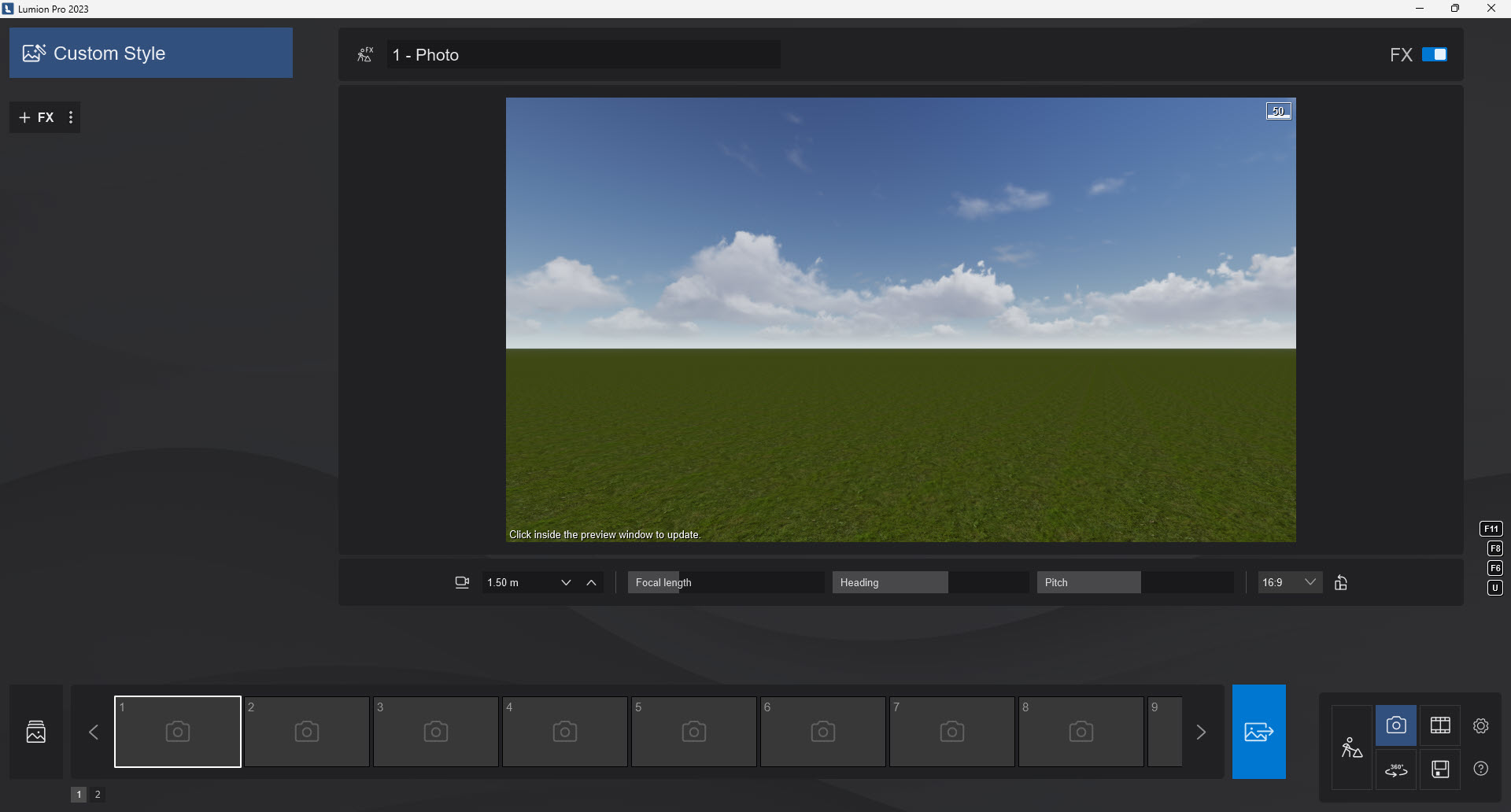

There is a limited number of Photo slots and some of the camera settings are not with the Photo Preview.

It looks like this:	It should look more like this:

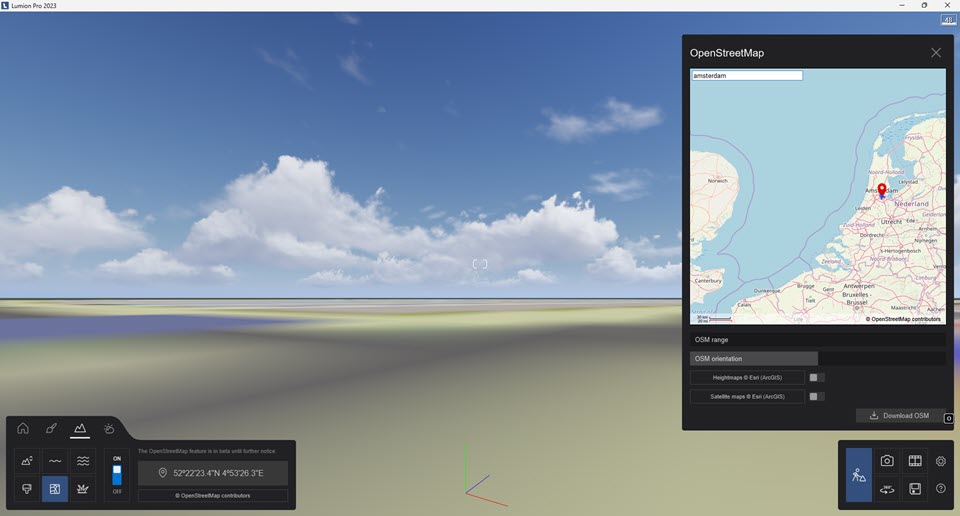

The interface takes up most of the screen.  There is no main menu for Lumion and the Download OSM button might be missing.

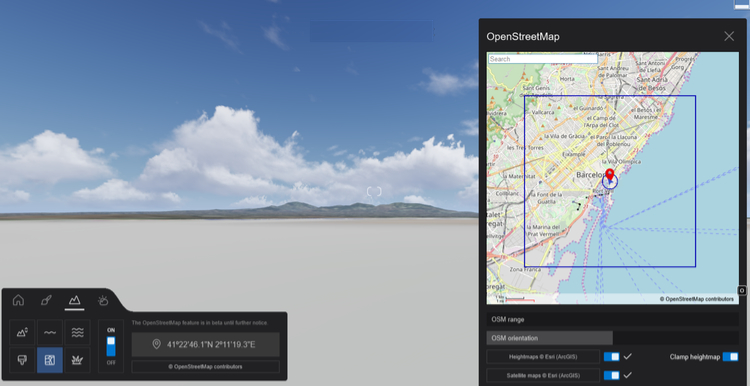

It looks like this:	It should look more like this:



2. Here's why:

This problem is caused by one of the following reasons:

• The screen resolution is too low.  Lumion requires a minimum screen resolution of 1920x1080.
• Custom app scaling is applied in Windows.

Follow the steps below in Section 3 to fix the resolution.

3. Check if the screen resolution is too low:

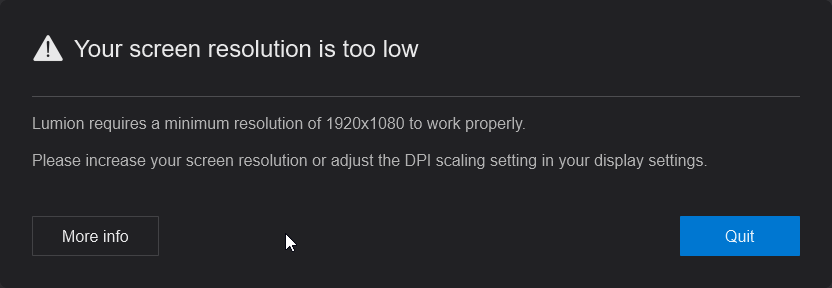

Lumion will display an error if:

• The screen resolution is too low:
•

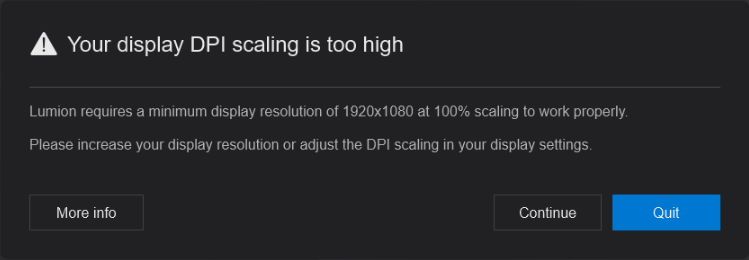

• the DPI scaling is too high:
•


To troubleshoot this:

3.1: Close Lumion.

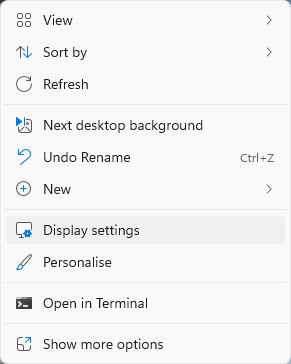

3.2: Right-click on an empty area of the Desktop and pick ‘Display settings’ (examples shown using Windows 11 unless otherwise stated):

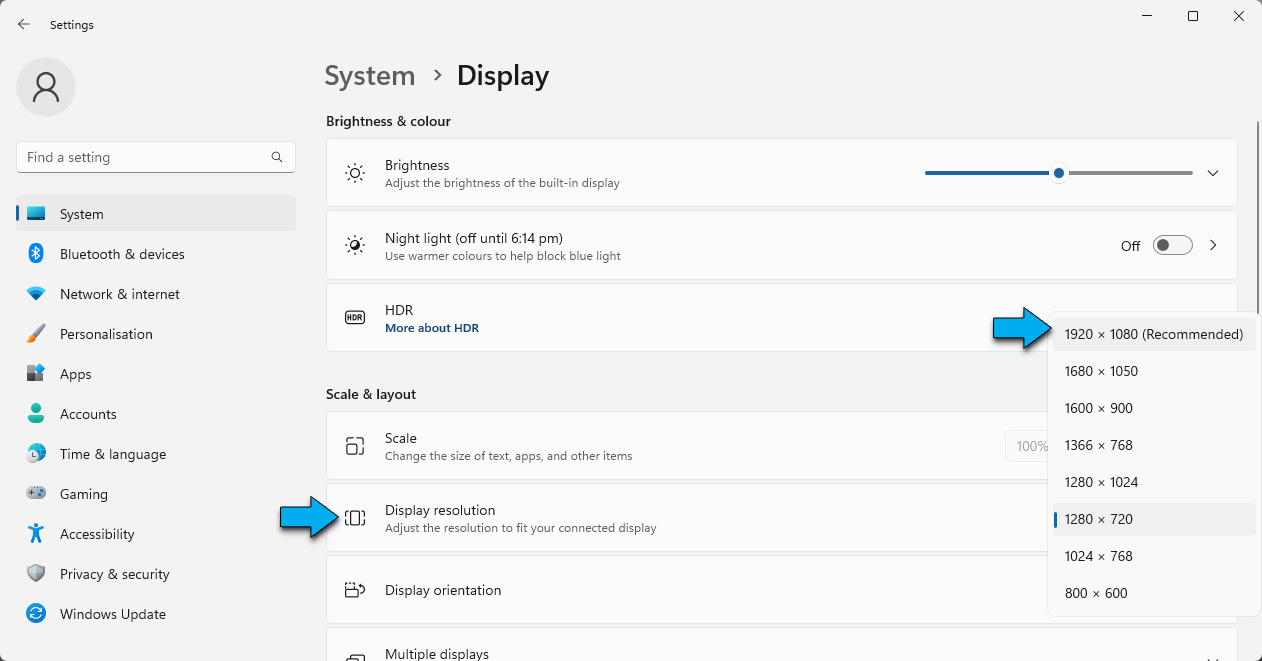

3.3: Change the ‘Display resolution’ to a minimum of 1920 x 1080:

3.4: Also, ensure that, if the ‘Display resolution’ is at 1920 x 1080, the 'Scale' of the display is set to 100%.

4. Check if custom app scaling applies

4.1:  Close Lumion.

4.2:  See this guide:

• External Link:  How to Fix Blurry Apps on Windows 11 or 10?

or this guide, however, we do not recommend using the steps to edit the Windows Registry.

• External Link:  How to change Scaling for Specific Apps in Windows 11

5. Still not working?

Please contact us in Technical Support:

• Knowledge Base:  Contact Lumion Technical Support

Applicable to:

Version 5.0 and above.
