1. Install the Lumion plug-in for ArchiCAD
1.1: Please follow the instructions below to download and install the plug-in for your version of Lumion and ArchiCAD:
- Download Link: Download Lumion LiveSync for ArchiCAD
2. Method A: LiveSync export
2.1: With Lumion LiveSync for ArchiCAD and Lumion 8.3 and newer, you can immediately set up a live, real-time visualization of your ArchiCAD 21-27 model:
If you are using an older version of Lumion, please see Method B below.
3. Method B: Lumion .DAE file export
3.1: We recommend exporting the model via LiveSync rather than via .DAE format as it is faster and requires fewer resources. However, if you prefer to export your model via a file, you can export a Lumion Collada file (.DAE) using the Lumion LiveSync for ArchiCAD Export button in the palette:
3.2: Alternatively, use the Export as COLLADA file from the LiveSync menu:
3.3: If you are using an older version of the plug-in for ArchiCAD, please use the following command:
File -> Save as... -> Lumion Collada file (.DAE)

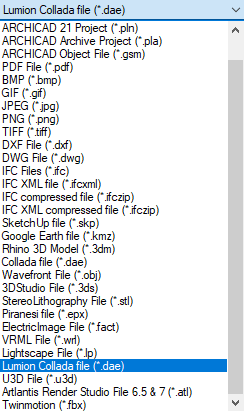

Make sure that you select the correct Lumion Collada file (.DAE) option:
3.4: Import the .DAE file in Lumion 5.7.2 or newer.
4. Tips & Troubleshooting
4.1: Why can't you see the model after importing and placing it in your Scene?
- The Insertion Point for the Imported Model in Lumion corresponds to the so-called Project Origin in ArchiCAD, i.e. 0,0,0.
- If a model is far away in Lumion, you need to move the model closer to the Project Origin, i.e. 0,0,0 in ArchiCAD, before exporting it to Lumion. Here's how:
- External Webpage: Far From Origin - Troubleshooting Guide
4.2: Why can't you assign a Lumion material to individual surfaces?
Lumion will always combine surfaces that use the same material in ArchiCAD. If you want to assign a Lumion material to a specific surface, you must assign a unique material to that surface in ArchiCAD before importing the model.
- Knowledge Base: Why can't I select just a part of the imported model?
4.3: What do you do if your Lumion Materials go missing after re-importing a model?
4.4: How do you replace imported objects with Library objects?
4.5: Why are some materials automatically converted to water and glass in Lumion?
If your ArchiCAD material name begins with one of the words in the table below and is followed by a space, it will be converted to special glass or water materials in Lumion when using LiveSync (or .DAE file format when using Lumion 10 or newer) to export the model via the Lumion LiveSync for ArchiCAD plug-in. Please note that the materials assigned in the 3D model to glass or water surfaces must have an opacity lower or equal to 99% for the conversion to take place.
The automatic conversion only takes place when you start the LiveSync function (or when you import the .DAE file in Lumion 10 or newer).
| Language | Water | Glass |
| Chinese | 水 | 玻璃 |
| English | Water | Glass |
| French | Eau | Verre |
| German | Wasser | Glas |
| Italian | Acqua | Vetro |
| Japanese | 水 | ガラス |
| Korean | 물 | 유리 |
| Polish | Woda | Szkło |
| Portuguese | Agua | Vidro |
| Russian | вода | стекло |
| Spanish | Agua | Vidrio |
| Swedish | Vatten | Glas |
4.6: How do you update a model in LiveSync when the file name or folder location of the ArchiCAD file has changed?
